Garage Elevator Automated Car Parking System with Limit Switch System Safety device

Name: Garage Elevator Automated Car Parking System with Limit Switch System Safety device
Brand: SDLIFT Or OEM
SKU: SJG3-2.5
Price: 3980 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3-2.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD9980 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                stacker car parking system, garage car elevator


Application:	Portable Garage Car Elevator	Power:	Electric And Hydraulic
Safe Device:	Explosion-Proof Lock Valve	Motor:	From Italy Or Chinese Famous Brand
Lift Style:	Scissor Portable Garage Car Elevator	Color:	Red, Grey, Yellow, Blue, Or As Your Optional
Lift System:	Hydraulic System	Power Supply:	220V/240V/380V/415V (as Request)
Material:	High Strength Manganese Steel

Application:	Portable Garage Car Elevator
Power:	Electric And Hydraulic
Safe Device:	Explosion-Proof Lock Valve
Motor:	From Italy Or Chinese Famous Brand
Lift Style:	Scissor Portable Garage Car Elevator
Color:	Red, Grey, Yellow, Blue, Or As Your Optional
Lift System:	Hydraulic System
Power Supply:	220V/240V/380V/415V (as Request)
Material:	High Strength Manganese Steel

Garage Elevator Automated Car Parking System with Limit Switch System Safety device

Car Elevator Parking Systems Garage Car Elevator

with CE with 2 Years Warranty

Application:

The Car Elevator Parking Systems Garage Car Elevator can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor.

Operation is easy. There are 2 sets control system installed on the Car Elevator Parking Systems Garage Car Elevator , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

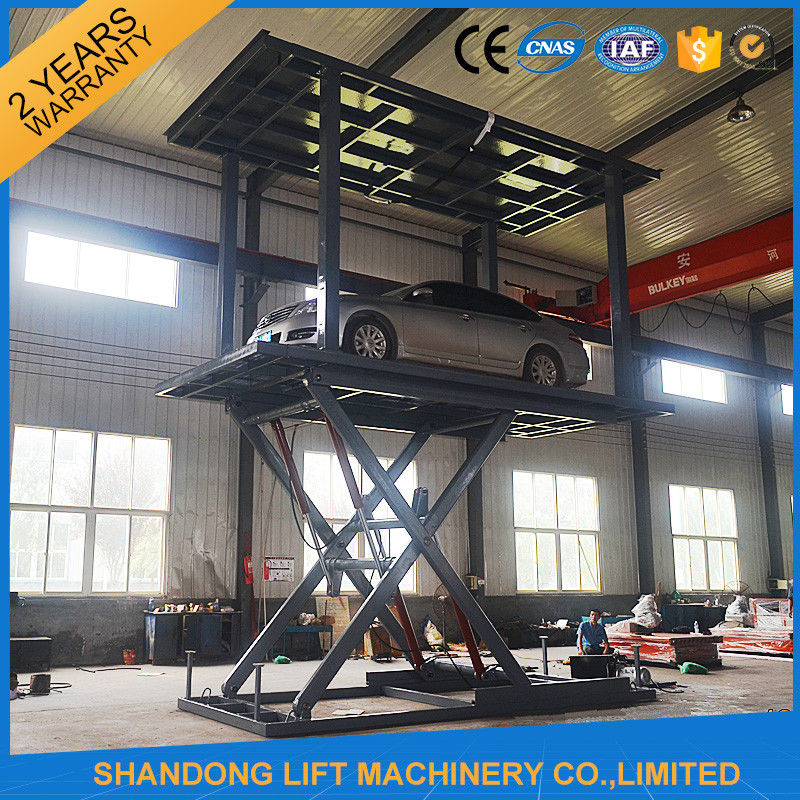

Production Pictures:

Garage Elevator Automated Car Parking System with Limit Switch System Safety device 0

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the CE Cheap Home Garage Car Lift Portable Lift For Car Parking to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the CE Cheap Home Garage Car Lift Portable Lift For Car Parking are passed 1.2 times loading test before leaving factory.

The models we supplied for clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	600mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	700mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	750mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	700mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	750mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	850mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	950mm	220V, 240V, 380V or 400V
The Car Elevator Parking Systems Garage Car Elevator can be customized as your detailed size.

The installation site:

Our services:

1) The Car Elevator Parking Systems Garage Car Elevator can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
