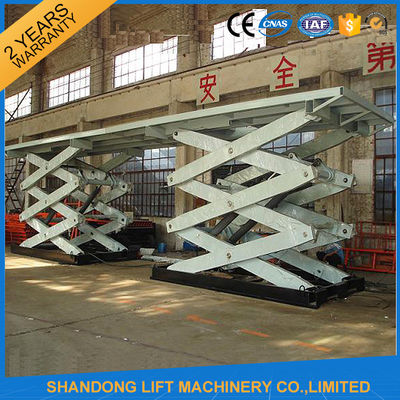

    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving

    Product Details:

    Place of Origin: Jinan, Shandong, China
    Brand Name: SDLIFT
    Certification: CE
    Model Number: SJG10-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: USD5980 - USD9900 / UNIT
    Packaging Details: solid iron case or plywood case package
    Delivery Time: 5-15 DAYS
    Supply Ability: 3,000pcs per year
    Get Best Price Contact Now

    Detail Information

    Application: Hydraulic Scissor Lift For Cargo Lifting Motor: From Italy Or Chinese Famous Brand
    Lift System: Hydraulic System Type: Double Scissor Lift Platform
    Lift Height: 1Ton To 20Ton Safety Device: Explosion Proof Lock Valve, Emergency
    Material: High Strength Manganese Steel Work Platform: Anti-skid Checkered Plate
    Lift Mechanism: Scissors Lift
    High Light:

    material handling lifts

    ,

    hydraulic lift platform

    Product Description

    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving

    Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving with CE



    With 2 Years Warranty



    Application:

    The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

     Operation is easy. There are 2 sets control system installed on the stationary hydraulic scissor lift , 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.



    Production pictures:



     Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 0 Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 1



    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 2 Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 3



    The frequent models we supplied for our clients:



    MODEL

    LOAD

    CAPACITY

    PLATFORM

    SIZE

    LIFT

    HEIGHT

    PIT

    DEPTH

    POWER

    SJG0.3-2

    0.3T

    1.5m x 1.5m

    2m

    400mm

    220V, 240V, 380V or 400V

    SJG0.5-3

    0.5T

    2m x 1.8m

    3m

    500mm

    220V, 240V, 380V or 400V

    SJG1-4.5

    1T

    2.1m x 1.5m

    4.5m

    650mm

    220V, 240V, 380V or 400V

    SJG1.5-4

    1.5T

    2.2m x 1.6m

    4m

    600mm

    220V, 240V, 380V or 400V

    SJG5-10

    5T

    4.5m x 2.5m

    10m

    1150mm

    220V, 240V, 380V or 400V

    SJG8-2.5

    8T

    6.5m x 4.5m

    2.5m

    850mm

    220V, 240V, 380V or 400V

    SJG12-3

    12T

    5.5m x 2.8m

    3m

    950mm

    220V, 240V, 380V or 400V

    SJG15-4.5

    15T

    8m x 2.2m

    4.5m

    1150mm

    220V, 240V, 380V or 400V

    SJG20-5

    20T

    6m x 3m

    5m

    1200mm

    220V, 240V, 380V or 400V

     The electric hydraulic scissor lift platform can be customized as your detailed size.



    Parts showing:

    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 4



    Safety

    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
    2) The safety rails to guarantee safety of the goods above lift platform.
    3) Equipped 4 guide rails, to ensure hydraulic scissor lift platform runs more smoothly and steadily.
    4) The limit switch system helps the hydraulic scissor lift platform to stop at accurate position.
    5) Electricity leakage protection device is equipped on, all electric components are CE certified.
    6) All the hydraulic scissor lift platforms are passed 1.2 times loading test before leaving factory.



    Installation sites:



    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 5 Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 6



    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 7 Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 8



    The customers visiting:



    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 9



    The certificate:



    Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 10 Double Heavy Duty Stationary Hydraulic Scissor Lift for Cargo Moving 11



    Our services:

    1) We can design the customerized electric hydraulic scissor lift platforms as per your requirement.

    2) The hydraulic scissor lift platform will be recommended to you once we got your requirement.

    3) Shipment can be arranged from our port to your destination port.

    4) Operation video can be sent to you if needed.

    5) User-friendly English manual for machine installation using and maintenance.

    6) 2 years warranty for whole machine without man-made faults.

    7) We will send you parts for free if there are any non-human factors faults during warranty time.

    8) Supply 24-hours technical assistance by email, telephone or other communication online.

    9) Engineers are available to your country if necessary.
