Blue High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3-6.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD8800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

vehicle scissor lift

,

home garage car lift

Load Capacity:
3000kgs
Lift Height:
6800mm
Platform Size::
5500mm X 2500mm
Application:
Home Garage Scissor Car Lift
Lift System:
Hydraulic System
Safe Device:
Explosion-Proof Lock Valve
Power Supply:
220V/240V/380V/415V (as Request)
Material:
High Strength Manganese Steel
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Motor:
From Italy Or Chinese Famous Brand
Load Capacity:
3000kgs
Lift Height:
6800mm
Platform Size::
5500mm X 2500mm
Application:
Home Garage Scissor Car Lift
Lift System:
Hydraulic System
Safe Device:
Explosion-Proof Lock Valve
Power Supply:
220V/240V/380V/415V (as Request)
Material:
High Strength Manganese Steel
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Motor:
From Italy Or Chinese Famous Brand
Blue High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift

3T 6.5m High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift​:



Application:

- The Hydraulic Scissor Car Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the Hydraulic Scissor Car Lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



Advantages:

Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.



Parameter:

Load capcity 3000kgs
Lift height 6800mm
Platform size 5500mm x 2500mm
Power 380v / 50hz/ 3ph / 5.5kw
Lift system hydraulic motor pump system
Lift Structure high strength Mn steel scissors structure



Safety:

1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.

2. The work table would equipped the guardrail to guarantee the safety.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.



Configuration:

1) Platform Material:2000mm*1000mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

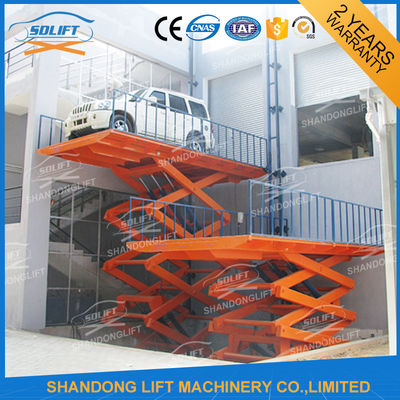

Application for cars pictures:

Blue High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift 0Blue High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift 1



Product's details showing:

Blue High Rise Hydraulic Scissor Car Lift Scissor Car Parking Basement Lift 2



Our Services:

1. All the machines will be full tested before shipment

2. The total machine guarantee is 24 months

3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you



Company Information:

Shandong Lift Machinery Co.,Ltd is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 4m to 21m. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in interior and exterior building decorations, workshops, docks, stations, supermarkets, halls, etc.



FAQ:

- Delivery Time:

5-25 days after we receive your order
- MOQ:

1 unit
- Trade term:

FOB / CIF to your nearest seaport
- Application field:

Construction, shipyard, industrial, airport, municipal garden or others
