    Underground Scissor Double Car Parking System Hydraulic Car Lift for 2 Cars

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT Or OEM
    Certification: CE ISO SGS
    Model Number: SJG4-2.3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: USD4980- USD9980 / UNIT
    Packaging Details: Iron case or plywood case package
    Delivery Time: 5-20 work days after deposit
    Supply Ability: 3600units per year
    Get Best Price Contact Now

    Detail Information

    Application: Hydraulic Car Lift Lift Height: 2.3m
    Load Capacity: 4000kgs For 2 Cars Work Platform: Anti-skid Thick Platform
    Motor: From Italy Or Chinese Famous Brand Material: High Strength Manganese Steel
    Color: Red, Grey, Yellow, Blue, Or As Your Optional Power Supply: 220V/240V/380V/415V (as Request)
    Safe Device: Explosion-Proof Lock Valve
    High Light:

    automated car parking system

    ,

    garage car elevator

    Product Description

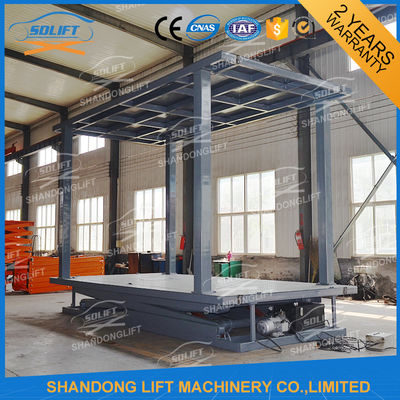

    Underground Scissor Double Car Parking System Hydraulic Car Lift for 2 Cars

    Underground Hydraulic Scissor Double Car Park Lift Hydraulic Car Lift for 2 Cars:



    Application:

    The Hydraulic Car Lift can be used to lift 2 car with different levels, suitable for 2 car moving between stairs, from basement to first floor, to second floor, or to third floor.
    Operation is easy. There are 2 sets control system installed on the Hydraulic car lift 2 level parking lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



    Configuration:

    1) The loading capacity: Below platform: 2500kgs ; Upper platform: 1500kgs
    2) The lifting height: 2300mm between the two platforms with 4 supports
    3) The platform size: Below platform: 5.6m x 2.6m ; Upper platform: 5.6m x 2.6m
    1) Platform Material 200mm * 150mm rectangular tube +6mm checkered iron
    2) Scissor material: 200mm * 150mm * 10mm high strength Manganese Steel.
    3) Hydraulic system: 380V/5.5Kw
    4) High Precision Hydraulic Cylinder: 125*4sets
    5) Piston Rod: 70*4 hard chromium plating surface.
    6) High-pressure oil pump
    7) Hydraulic oil: summer 46#, winter 32#
    8) Controller: 1 control box below, 1 control panel above platform



    Safety:

    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
    2) The safety rails to guarantee safety of the cars above the platform.
    3) The limit switch system helps Hydraulic Car Lift in garage to stop at accurate position.
    4) Electricity leakage protection device is equipped on, all electric components are CE certified.
    5) All the Hydraulic Car Lift are passed 1.2 times loading test before leaving factory.



    The workshops:

    Underground Scissor Double Car Parking System Hydraulic Car Lift for 2 Cars 0



    The products:

    Underground Scissor Double Car Parking System Hydraulic Car Lift for 2 Cars 1

    The Certificates:

    Underground Scissor Double Car Parking System Hydraulic Car Lift for 2 Cars 2

    Our services:

    1) The Hydraulic Car Lift can be done as your request

    2) Shipment can be arranged from our port to your destination port.

    3) Operation video can be sent to you if needed.

    4) English manual for car lift installation , using and maintenance.

    5) 2 years warranty for whole machine without man-made faults.
    6) We will send you parts for free with non-human factor faults during warranty time.
    7) Supply 24-hours technical assistance by email, telephone or skype.
    8) Engineers are available to your country if necessary.
