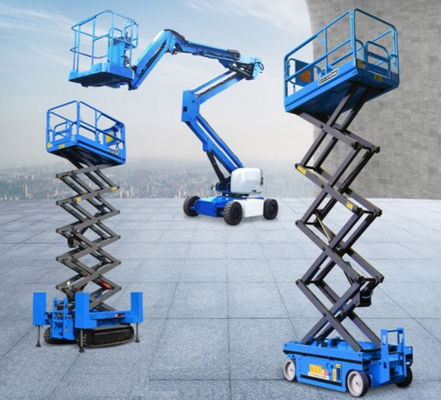

12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding

12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding
12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding
12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding

Large Image :  12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding

Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO
Model Number: GTJZ12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD7980 - 15800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 1200 units per year

12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding

Description
Application: Self-Propelled Aerial Scissor Lift Load Weight: 320kg
Lifting Height: 12m Control System: Battery
Warranty: 12 Months Power: Battery
Feature: Self Propelled Scissor Lift With Battery Power Color: Blue, Red, Grey, Orange Or Optional
Capacity Of Extension Deck: 150kg
High Light:

aerial lift scaffolding

,

self-propelled scissor lifts

Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding



1. Advantage:
- You can control it on the platform and on the chassis, operate easily and freely.
- Extension platform, large working place.

- Removable guardrail
- 90 degree steering wheel can run in high and low speed.



2. Main parameter:

Model No. GTJZ12
Max. Platform Height 11.8m
Max. working Height 13.8m
Ground Clearance-G 100/20mm
Lift Capacity 320kg
Platform Size(A*B) 2290×1130mm
Platform Extend Length 900mm
Max. Drive Speed (Platform Stowed) 3.2km/h
Max. Drive Speed (Platform Elevated) 0.8km/h
Min. Turning Radius 4500mm
Grade-ability 25%
Tire 0.305x0.125m
Lift Motor 24/v/kw
Battery 4×6/230 v/Ah
Charger 24/20-30v/kw
Overall Length-D 2495mm
Overall Width -E 1187mm
Overall Height -C 2585mm
Overall Net Weight 2870kg



3. Introduction:

1. The Self-Propelled Man Lift storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, ect.

2. Larger working space: The platform can extend on one side, whic can enlarge the working space.

3. Swing-out battery box and power moduletrays allow easy access to engine componentsfor convenient service

4. Scissor platforms offer up to 25% grade ability when driving on slopes with safety protection.

12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 0



5. Control box: there are control box not only on the platform but also on the chassis, easy to control.

6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.

7. Battery with charger: Trojan brand, import from USA, better service than normal battery.

8. Hydraulic motor: The hydraulic motor support the 2-front wheel driving with oil inlet pipe and oil outlet pipe conveying oil.

9. Tire: Non-marking tire help to prevent the damage to the floor and stuck by the impurities.



4. Product List:





Hydraulic

Wheels

Table size

M

Load

KGS

Platform

height M

Overall size

MM

Extendable

M

Power

KW

Weight

KGS



GTJZ6A



2.30*0.81



380

         6



2.480*0.81*2.18



0.9



3.3



1880



GTJZ6



2.30*1.13



550



6



2.480*1.19*2.19



0.9



3.3



2150



GTJZ8A



2.29*0.81



230



8



2.480*0.85*2.30



0.9



3.3



2030



GTJZ8



2.29*1.13



450



8



2.480*1.19*2.32



0.9



3.3



2300



GTJZ10



2.30*1.13



320



10



2.495*1.181*2.45



0.9



3.3



2530



GTJZ12



2.29*1.13



320



11.8



2.495*1.187*2.585



0.9



4.5



2870



GTJZ14



2.67*1.13



227



13.8



2.840*1.40*2.595



0.9



4.5



3340



4. Product pictures:



12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 1

12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 212m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 3


Certificate:



12m Self - Propelled Scissor Lifts Mobile Elevated Work Platform Aerial Lift Scaffolding 4


6. Our service:

1. All machines sold are completely tested before shipment;

2. One year warranty without man-made fault;

3. 24hours technical support by email, telephone or video online.

4. User-friendly English manual for machine using and maintain.

5. Spare parts will be offered for free within warranty
