Product Details:
|
| Application: | Self-Propelled Man Lift | Load Weight: | 300kg 500kg |
|---|---|---|---|
| Lifting Height: | 4m To 12m | Control System: | Battery |
| Warranty: | 12 Months | Power: | Battery |
| Feature: | Self Propelled Scissor Lift With Battery Power | Color: | Blue, Red, Grey, Orange Or Optional |
| Capacity Of Extension Deck: | 150kg | ||
| High Light: | aerial lift scaffolding,self-propelled scissor lifts |
||
12m Self-Propelled Man Lift 300kg Auto Mobile Battery Man Work Platform Elevator:
| Model No. | SJY0.3-12 | ||
| Max. Platform Height | 13.23m | ||
| Max. working Height | 11.53m | ||
| Min. Platform Height | 1435mm | ||
| Ground Clearance-G | 100/20mm | ||
| Lift Rated Capacity | 230kg | ||
| Platform Size(A*B) | 2260×1130mm | ||
| Platform Extend Length | 900mm | ||
| Max. Drive Speed (Platform Stowed) | 3.2km/h | ||
| Max. Drive Speed (Platform Elevated) | 0.8km/h | ||
| Min. Turning Radius | 4500mm | ||
| Grade-ability | 25% | ||
| Tire | 0.305x0.125m | ||
| Lift Motor | 24/3 v/kw | ||
| Battery | 4×6/230 v/Ah | ||
| Charger | 24/20-30v/kw | ||
| Overall Length-D | 2485mm | ||
| Overall Width -E | 1150mm | ||
| Overall Height -C | 2535mm | ||
| Overall Net Weight | 2580kg | ||
3. Introduction:
1. The Self-Propelled Man Lift storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, ect.
2. Larger working space: The platform can extend on one side, whic can enlarge the working space.
3. Swing-out battery box and power moduletrays allow easy access to engine componentsfor convenient service
4. Scissor platforms offer up to 25% grade ability when driving on slopes with safety protection.
5. Control box: there are control box not only on the platform but also on the chassis, easy to control.
6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.
7. Battery with charger: Trojan brand, import from USA, better service than normal battery.
8. Hydraulic motor: The hydraulic motor support the 2-front wheel driving with oil inlet pipe and oil outlet pipe conveying oil.
9. Tire: Non-marking tire help to prevent the damage to the floor and stuck by the impurities.

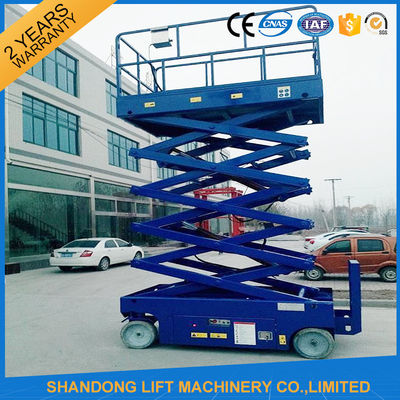

4. Product picture:
Company Information:
Certificate:
6. Our service:
1. All machines sold will be tested before shipment;
2. One year warranty without man-made fault;
3. 24hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free within warranty
