Product Details
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE TUV SGS
Model Number: SJG2-1
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Price: USD2980- USD9900 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year
Application: |
Warehouse Cargo Scissor Lift |
Power Supply: |
220V/240V/380V/415V (as Request) |
Safe Device: |
Explosion-Proof Lock Valve, Safe Trip Sensor, Maintenance Bar |
Lift System: |
Hydraulic System |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Load Capacity: |
2000kgs |
Lift Height: |
1m |
Material: |
High Strength Manganese Steel |
Platform Size:: |
2500mm X 1500mm |
Application: |
Warehouse Cargo Scissor Lift |
Power Supply: |
220V/240V/380V/415V (as Request) |
Safe Device: |
Explosion-Proof Lock Valve, Safe Trip Sensor, Maintenance Bar |
Lift System: |
Hydraulic System |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Load Capacity: |
2000kgs |
Lift Height: |
1m |
Material: |
High Strength Manganese Steel |
Platform Size:: |
2500mm X 1500mm |

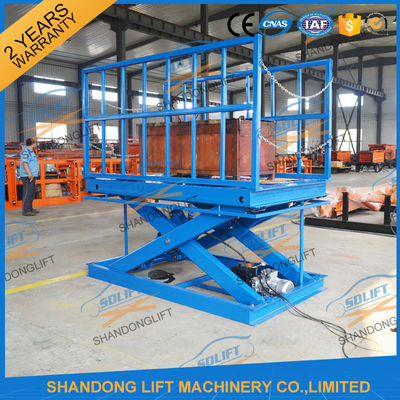

2T Warehouse Cargo Hydraulic Scissor Lift with Safe Sensor and Maintenance Bar:
Application:
- The Warehouse Cargo Hydraulic Scissor Lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor. |
- Operation is easy. There are 2 sets control system installed on the stationary scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on the platform. |
Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate |
2) Support scissors: high strength Manganese Steel. |
3) Hydraulic system: 380V/3.0Kw or 220v or as your request |
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection |
5) Piston Rod: hard chromium plating surface. |
6) High-pressure oil pump: from Italy or Chinese famous brand. |
7) Hydraulic pipe: high pressure pipe with double expanded metal protected |
8) Hydraulic oil: summer 46#, winter 32# |
9) Controller: 1 control box below, 1 hand controller above platform |
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safe trip sensor will automatically stop the lift downing, when any object touch it during the lift downing.
3) The safety rails to guarantee safety of the goods above scissor lift.
4) Equipped 2 pcs maintenance safe bar under the platform, to ensure the scissor lift not down when worker maintence.
5) The limit switch system helps the scissor lift to stop at accurate position.
6) Electricity leakage protection device is equipped on, all electric components are CE certified.
7) All the scissor lift are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the scissor lift as per your requirement.
2) The most suitable scissor lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
