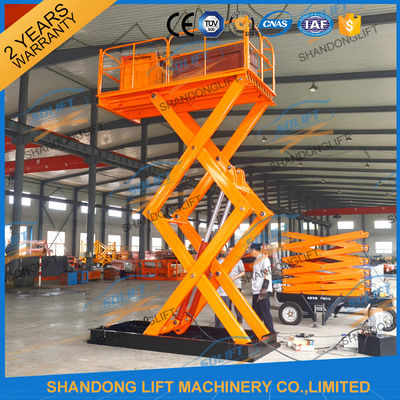

3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table

Product Details

Place of Origin: Jinan, Shandong, China

Brand Name: SDLIFT

Certification: CE TUV SGS

Model Number: SJG3-3.6

Payment & Shipping Terms

Minimum Order Quantity: 1UNIT

Price: USD 2800 - 7800 / unit

Packaging Details: Iron case or plywood case package

Delivery Time: 5-15 DAYS

Supply Ability: 3000units / year

Get Best Price
Highlight:

material handling lifts

,

hydraulic lift platform

Type:
Scissor Lift Table
Material:
High Strength Manganese Steel
Feature:
Easy Operation Safety Convenience
Platform:
Anti-skid Checkered Plate
Lift Drive / Actuation:
Hydraulic Lift System
Motor:
380v / 2.2kw Or 220v
Package:
Iron Case Or Plywood Case Package
Safety Device:
Explosion Proof Lock Valve, Emergency
Control Mode:
Electric Control
Warranty:
2 Years
Application:
Hydraulic Material / CargoLifting
Voltage:
110v 220v 240v 380v Optional
Lifting Capacity:
3000kgs
Lifting Height:
3600mm
Platform Size:
3m X 1.8m
Surface::
Rust-proof
Type:
Scissor Lift Table
Material:
High Strength Manganese Steel
Feature:
Easy Operation Safety Convenience
Platform:
Anti-skid Checkered Plate
Lift Drive / Actuation:
Hydraulic Lift System
Motor:
380v / 2.2kw Or 220v
Package:
Iron Case Or Plywood Case Package
Safety Device:
Explosion Proof Lock Valve, Emergency
Control Mode:
Electric Control
Warranty:
2 Years
Application:
Hydraulic Material / CargoLifting
Voltage:
110v 220v 240v 380v Optional
Lifting Capacity:
3000kgs
Lifting Height:
3600mm
Platform Size:
3m X 1.8m
Surface::
Rust-proof
3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table

3T 3.5M Cargo Loading Hydraulic Scissor Lift Warehouse Scissor Lift Table​:



Product Description:



Hydraulic scissor lift is used to convey the goods from one working level to another.

- The control panels are available at the designated floors and one the lift platforms.

- Heavy capacity, platform size and lifting height can be chosen according to your actual needs.



1. Product's Detailed:





Model SJG3-3.6
Capacity 3000kg
Platform size 3000*1800mm
Closed height 650mm
Platform height 3600mm
Lift driven power 4.0kw
Weight 2600kg
Color Orange, red, blue; as request
Voltage 220v; 240v; 380v; 415v; as request





Please kindly let us know and provide you detailed info if this model OK.



2. Safety Precaution:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.

2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

3. Emergency decline valve: it can go down when you meet an emergency or the power off.

4. Anti-dropping device: Prevent falling of platform



3. Hydraulic scissor lift advantages:

---Installed in the pit,do not occupy space.

---When lifting up or down, up,down and stop three buttons control the lift.

---Great load capacity, 1.2 times capacity load test. skidproof platform.

---Sensitive overload protection devices locking device for failing protection.



4. hydraulic scissor lift model list-for your reference





Model Load Platform size Lifting height No-working height Power
SJG3-2.4 3T 2.0*2.0M 2.4M 660MM 4KW/380V
SJG2-5.0 2T 2.1*1.2M 5.0M 870MM 4KW/380V
SJG1-4.5 1T 2.1*1.5M 4.5M 800MM 3KW/380V
SJG5-6.5 5T 2.2*1.6M 6.5M 1280MM 5.5KW/380V
SJG3-6.5 3T 2.2*1.9M 6.5M 1520MM 5.5KW/380V
SJG1.5-3.8 1.5T 2.2*2.0M 3.8M 700MM 4KW/380V
SJG1-6.0 1T 1.9*1.1M 6.0M 1100MM 3KW/380V
SJG2-6.0 2T 2.0*1.3M 6.0M 1200MM 4KW/380V
SJG1.5-0.8 1.5T 2.0*1.5M 0.8M 500MM 3KW/380V
SJG1 -4.3 1T 2.0*1.8M 4.3M 800MM 4KW/380V
SJG2-6.0 2T 2.0*2.0M 6.0M 1030MM 4KW/380V
SJG3-2.4 3T 2.0*2.0M 2.4M 630MM 2.2KW/380V





Please kindly tell us your requirements if above model is not suitable for you. Experienced engineer can design and offer you the best solution as your request.



Application



Hydraulic scissor lift is generally used for lifting cargo and people to working place. Loadingand unloading goods from ground to underground or to other floors.

3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 03T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 1

3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 23T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 3



Packaging & Shipping



Plywood case with iron frame packing to keep the machine safety during the shipment. We will pack the hydraulic scissor lift table by the most compact way to save the freight.

3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 4



Certificates:

3T 3.6M Cargo Loading Fied Stationary Hydraulic Scissor Lift Warehouse Scissor Lift Table 5





Our Services:

A. We offer 12 month warranty apart from artificial faults, during warranty time, we will bear the cost of parts and freight.
B. If it is necessary for you, our engineer are available to service machinery overseas.
C. We offer 24 hours service for technical support and any assistance.
