|Application:||Hydraulic Double Deck Car Parking Lift||Lift Height:||3m (as Request)|
|Load Capacity:||3ton For Each Deck Platform(as Request)||Work Platform:||Anti-skid Thick Platform|
|Motor:||From Italy Or Chinese Famous Brand||Material:||High Strength Manganese Steel|
|Color:||Red, Grey, Yellow, Blue, Or As Your Optional||Power Supply:||220V/240V/380V/415V (as Request)|
|Safe Device:||Explosion-Proof Lock Valve||Platform Size::||5.6m X 2.7m|
stacker car parking system,
automated car parking system

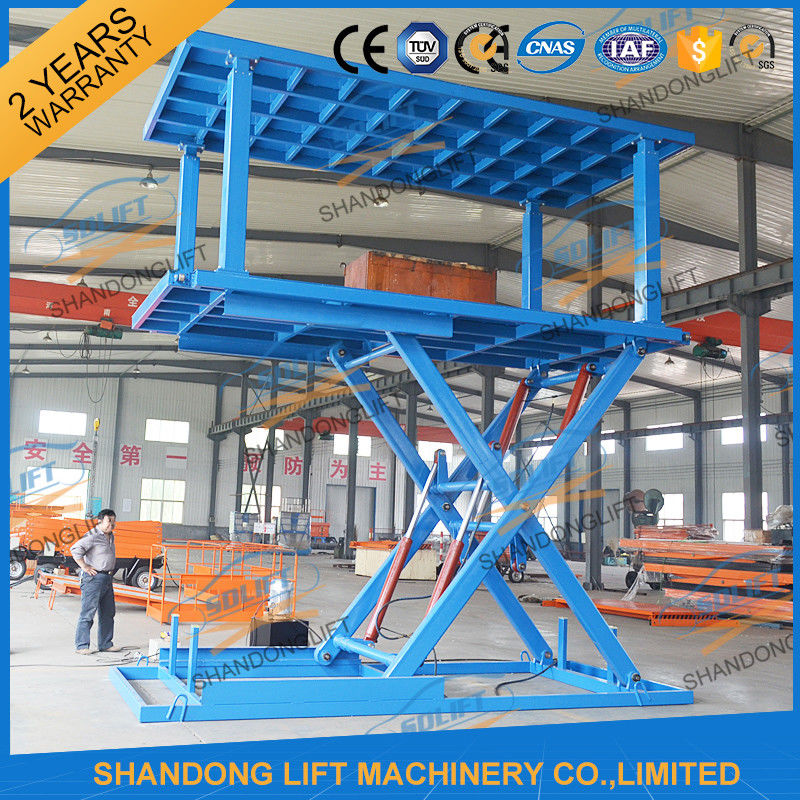

3T Double Deck Car Parking Lift for Villa Home Garage Double Basement Car Lift :
- The double parking car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the Hydraulic car lift 2 level parking lift , 1 control box below, and 1 hand controller on safety rail that can be operated on the platform.
1) Loading capacity: 3000kgs for below platform; 3000kgs for upper platform
2) The lifting height: 3000mm
3) The platform size: 5600mm x 2700mm for both the below and upper platform
4) Platform Material: 200mm * 150mm rectangular tube + 6mm checkered iron
5) Scissor material: 200mm * 150mm*15mm high strength Manganese Steel.
6) Hydraulic system: 380V/5.5Kw
7) High Precision Hydraulic Cylinder: 110*4sets
8) Piston Rod: 70*4 hard chromium plating surface.
9) High-pressure oil pump
10) Hydraulic oil: summer 46#, winter 32#
11) Controller: 1 control box below, 1 control panel above platform
The frequent models we supplied for our clients:
|MODEL||LOAD CAPACITY||PLATFORM SIZE||LIFT HEIGHT||PIT DEPTH||POWER|
|SJG2.5-3||2.5T||5.2m x 2.6m||3m||750mm||220V, 240V, 380V or 400V|
|SJG2-6.5||2T||5.2m x 2.8m||6.5m||800mm||220V, 240V, 380V or 400V|
|SJG2.5-3.5||2.5T||5.2m x 2.6m||3.5m||800mm||220V, 240V, 380V or 400V|
|SJG2.5-5||2.5T||5.6m x 3m||5m||800mm||220V, 240V, 380V or 400V|
|SJG3-2.5||3T||5m x 2.3m||2.5m||750mm||220V, 240V, 380V or 400V|
|SJG3-3||3T||5.2m x 2.6m||3m||800mm||220V, 240V, 380V or 400V|
|SJG3-3.5||3T||5.6m x 2.7m||3.5m||800mm||220V, 240V, 380V or 400V|
|The double parking car lift can be customized as your detailed size.|
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps double parking car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the double parking car lift are passed 1.2 times loading test before leaving factory.
Our client from New Zealand inspect our Hydraulic Double Deck Car Parking Lift for new order in our factory in June 2016:
1) We can design the double parking car lift as per your requirement.
2) The most suitable double parking car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
