Highlight:
vehicle scissor lift
, home garage car lift
Type: |
Hydraulic Car Lift Scissor Car Lift |
Lift System: |
Hydraulic System |
Safe Device: |
Explosion-Proof Lock Valve |
Motor: |
From Italy Or Chinese Famous Brand |
Application: |
Garage Scissor Car Lift |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Load Capacity: |
2.5T |
Lift Height: |
5000mm |
Power Supply: |
220V/240V/380V/415V (as Request) |
Platform Size: |
5600mm X 2600mm |
2.5T Inground Hydraulic Car Lift 5M Garage Fixed Scissor Car Lift CE TUV SGS
2.5T Inground Hydraulic Car Lift 5M Garage Fixed Scissor Car Lift CE TUV SGS:
Application:
1) Hydraulic Car Lift is one special type scissor lift for car storage or mainain. You can find it normally in 4S shop, exhibition hall, which also used widely in home or apartment garage indoor or outdoor. Pit mounted installation can save much space above ground, and provide convinient access for car.
2) Operation is easy. There are 2 sets control system installed on the car parking lift hydraulic scissor car lifts , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
Parameter:
1) load capacity : 2500kgs
2) platform size : 5.6m x 2.6m
3) travel height : 5m
4) structure : high-strength Manganese steel
5) power : 380v / or 220v / or 240v / or 400v
6) Installation : underground , into a pit
Configuration:
1) Platform Material: rectangular tube +10mm checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 220v / 380V or just as per your requests
4) High Precision Hydraulic Cylinder: 180*4sets
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the car parking lift hydraulic scissor car lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car parking lift hydraulic scissor car lifts are passed 1.2 times loading test before leaving factory.
Product advantages:
- Installed in the pit,do not occupy space.
- When lifting up or down, up,down and stop three buttons control the lift.
- Great load capacity, 1.2 times capacity load test. skidproof platform.
- Sensitive overload protection devices locking device for failing protection.
Plesae kind note:
Customized Hydraulic Car Lift are available upon request. Please kindly let us know your requsts about lifting height, load weight and platform size. Specialized solution will be offered accordingly.
The models we supplied for our clients:
|
MODEL
|
LOAD CAPACITY
|
PLATFORM SIZE
|
LIFT HEIGHT
|
PIT DEPTH
|
POWER
|
|
SJG2.5-3
|
2.5T
|
5.2m x 2.6m
|
3m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG2-6.5
|
2T
|
5.2m x 2.8m
|
6.5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-3.5
|
2.5T
|
5.2m x 2.6m
|
3.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-5
|
2.5T
|
5.6m x 3m
|
5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG3-2.5
|
3T
|
5m x 2.3m
|
2.5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3
|
3T
|
5.2m x 2.6m
|
3m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3.5
|
3T
|
5.6m x 2.7m
|
3.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG5-10
|
5T
|
4.5m x 2.5m
|
10m
|
1150mm
|
220V, 240V, 380V or 400V
|
|
SJG8-2.5
|
8T
|
6.5m x 4.5m
|
2.5m
|
850mm
|
220V, 240V, 380V or 400V
|
|
SJG12-3
|
12T
|
5.5m x 2.8m
|
3m
|
950mm
|
220V, 240V, 380V or 400V
|
|
SJG15-4.5
|
15T
|
8m x 2.2m
|
4.5m
|
1050mm
|
220V, 240V, 380V or 400V
|
|
SJG20-5
|
20T
|
6m x 3m
|
5m
|
950mm
|
220V, 240V, 380V or 400V
|
|
The Hydraulic car parking lift hydraulic scissor car lift car can be customized as your detailed size.
|

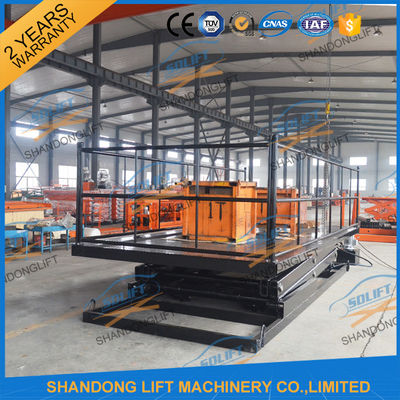

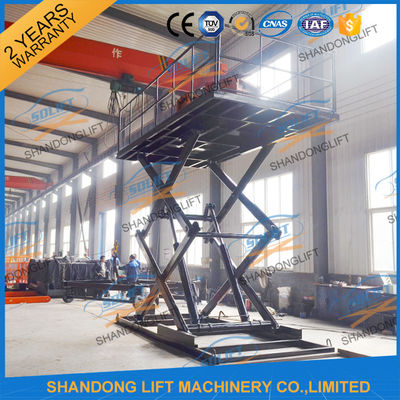

The product showing:
The Packing and delivery:
Before dispatch, scissor car lift will be packed seriously. Steel frame inside, plywood case outside for protection.
If container is too tigher,we will use pe film for packing or pack scissor car lift according to customers special request.
