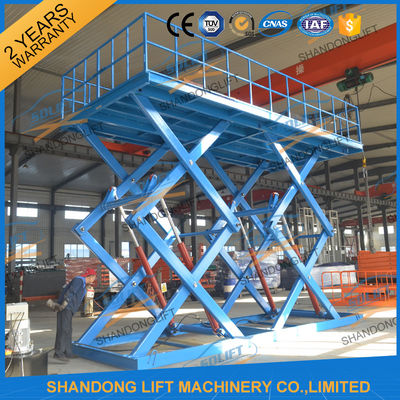

CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE TUV SGS

Model Number: SJG5-4.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD7800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

home garage car lift

,

automotive scissor lift

Application:
Scissor Lift For Car Parking
Safe Device:
Explosion-Proof Lock Valve
Lift Drive:
Hydraulic Car Lift
Motor:
From Italy Or Chinese Famous Brand
Material:
High Strength Manganese Steel
Lift System:
Hydraulic System
Power Supply:
380v/50hz/3ph/5.5kw
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Structure:
Double Scissor Lift Structure
Loading Capacity:
5000kgs
Lifting/travel Height:
4500mm
Platform Size:
7000mm X 3000mm
Application:
Scissor Lift For Car Parking
Safe Device:
Explosion-Proof Lock Valve
Lift Drive:
Hydraulic Car Lift
Motor:
From Italy Or Chinese Famous Brand
Material:
High Strength Manganese Steel
Lift System:
Hydraulic System
Power Supply:
380v/50hz/3ph/5.5kw
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Structure:
Double Scissor Lift Structure
Loading Capacity:
5000kgs
Lifting/travel Height:
4500mm
Platform Size:
7000mm X 3000mm
CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift

CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift​:





Application:



The Hydraulic scissor car lift can be used to lift car with different levels, suitable for car parking between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the Hydraulic scissor car lift , 1 control box below, and 1 hand controller on safety rail that can be operated on upper platform.



Advantages:



Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the Hydraulic scissor car lift.



Parts showing:



CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift 0



The models we supplied for clients:





MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V
The Hydraulic scissor car lift can be customized as your detailed size.



Safety:


1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Auto Lift For Car Underground Parking Lift​ to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Auto Lift For Car Underground Parking Lift​ are passed 1.2 times loading test before leaving factory.



Configuration:



1) Platform Material:  rectangular tube +6mm checkered iron

2) Scissor material:  high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 4pcs

5) Piston Rod:  hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Products showing:



CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift 1





Packaging & Shipping:



CE 5T Hydraulic Double Scissors Car Parking Lift Large Platform Scissor Car Lift 2
