Explosion Proof Lock Valve Hydraulic Scissor Car Lifts For Home Garage

Name: Explosion Proof Lock Valve Hydraulic Scissor Car Lifts For Home Garage
Brand: SDLIFT Or OEM
SKU: SJG3.5-3
Price: 3980 USD
Availability: InStock
Rating: 4.5 (111 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3.5-3

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD7800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                home garage car lift, automotive scissor lift


Application:	Hydraulic Car Lifter Hot Dip Galvanizing Car Scissor Lift Table	Safe Device:	Explosion-Proof Lock Valve
Lift Drive:	Hydraulic Car Lifter	Motor:	From Italy Or Chinese Famous Brand
Material:	High Strength Manganese Steel	Lift System:	Hydraulic System
Power Supply:	220V/240V/380V/415V (as Request)	Color:	Red, Grey, Yellow, Blue, Or As Your Optional
Structure:	Scissor Lift Structure

Application:	Hydraulic Car Lifter Hot Dip Galvanizing Car Scissor Lift Table
Safe Device:	Explosion-Proof Lock Valve
Lift Drive:	Hydraulic Car Lifter
Motor:	From Italy Or Chinese Famous Brand
Material:	High Strength Manganese Steel
Lift System:	Hydraulic System
Power Supply:	220V/240V/380V/415V (as Request)
Color:	Red, Grey, Yellow, Blue, Or As Your Optional
Structure:	Scissor Lift Structure

Explosion Proof Lock Valve Hydraulic Scissor Car Lifts For Home Garage

hydraulic car lifter hot dip galvanizing car scissor lift table with CE

Application:

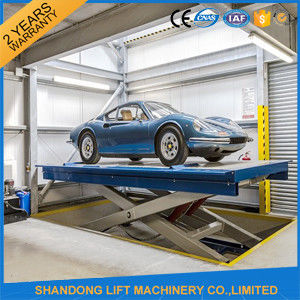

The hydraulic car lifter hot dip galvanizing car scissor lift table can be used to lift car with different levels, suitable for car parking between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the Hydraulic Auto Lift For Car Underground Parking Lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

Parts showing:

Explosion Proof Lock Valve Hydraulic Scissor Car Lifts For Home Garage 0

The models we supplied for clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	700mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	750mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1050mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	950mm	220V, 240V, 380V or 400V
The Auto Lift For Car Underground Parking Lift can be customized as your detailed size.

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Auto Lift For Car Underground Parking Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Auto Lift For Car Underground Parking Lift are passed 1.2 times loading test before leaving factory.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Advantages:

Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the Hydraulic Auto Lift For Car Underground Parking Lift .

Packaging & Shipping:

Explosion Proof Lock Valve Hydraulic Scissor Car Lifts For Home Garage 1
