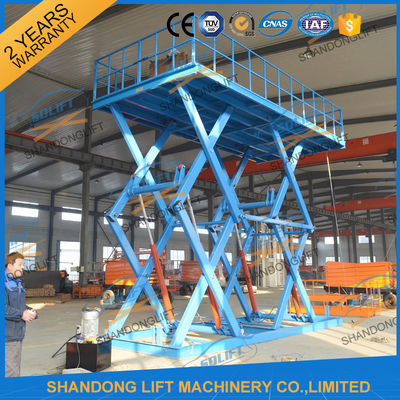

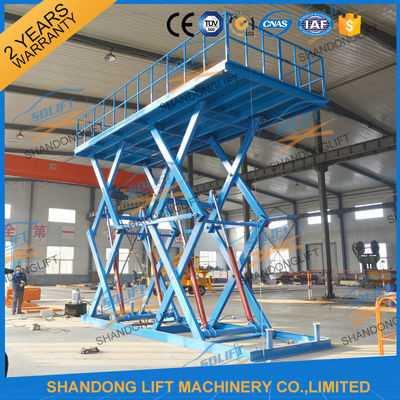

CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height

Product Details

Place of Origin: CHINA

Brand Name: SDLIFT

Certification: CE

Model Number: SJG5-5

Payment & Shipping Terms

Minimum Order Quantity: 1uint

Price: USD1000-15000/unit

Packaging Details: The normal package is wooden box for cargo lift/cargo elevator. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack cargo lift according to customers special request.

Delivery Time: 15 working days from deposit

Payment Terms: T/T, L/C

Supply Ability: 3500unit/year

Get Best Price
Highlight:

material handling lifts

,

hydraulic lift platform

Place Of Origin:
Shandong, China (Mainland)
Lift Mechanism:
Hydraulic + Lift Chain
Rated Loading Capacity:
500kg
Table Size:
8000*3000mm
Guardrail Height:
1100mm
Power:
380v/50hz/3ph/11kw
Max. Lifting Heigh:
5000mm
Application:
Cargo Lift For Warehouse Or Work Shop
Lift Speed:
3-4m/min
Place Of Origin:
Shandong, China (Mainland)
Lift Mechanism:
Hydraulic + Lift Chain
Rated Loading Capacity:
500kg
Table Size:
8000*3000mm
Guardrail Height:
1100mm
Power:
380v/50hz/3ph/11kw
Max. Lifting Heigh:
5000mm
Application:
Cargo Lift For Warehouse Or Work Shop
Lift Speed:
3-4m/min
CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height

CE 5T 5M Heavy Duty Warehouse Material Scissor Lift Hydraulic Upright Cargo Lift​​:



Key parameters:

   Load weight:

       5000kgs

   Table size:

       8m x 3m

   Lift height:

       5m

   Structure:

       high-strength Mn steel material

   Control system

       1 control box, 1 control panel

   Power:

      380v / or 220v / or 240v / or 400v

   Safety device:

      explosion-proof lock valve

   Standard

      CE, ISO9001



Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above platform.
3) Equipped 4 guide rails, to ensure the Warehouse Elevator Lift runs more smoothly and steadily.
4) The limit switch system helps the lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the warehouse elevator lift are passed 1.2 times loading test before leaving factory.

We have two types of Warehouse Scissor Lift as follows,



Stationary scissor lift.png













CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 1Application:

·The warehouse scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

·Operation is easy. There are 2 sets control system installed on the warehouse elevator lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.



The frequent models we supplied for our clients:



MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG0.3-2

0.3T

1.5m x 1.5m

2m

400mm

220V, 240V, 380V or 400V

SJG0.5-3

0.5T

2m x 1.8m

3m

500mm

220V, 240V, 380V or 400V

SJG1-4.5

1T

2.1m x 1.5m

4.5m

650mm

220V, 240V, 380V or 400V

SJG1.5-4

1.5T

2.2m x 1.6m

4m

600mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-3

2.5T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

800mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

 The warehouse scissor lift can be customized as your detailed size.



Factory pictures:

The workers test the 3 warehouse scissor lift for our clients from India in our factory:

CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 2



The Tanzania customers came to test the warehouse scissor lift in our factory:

CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 3



The products in our factory:

CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 4CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 5

CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 6CE 5T Heavy Duty Warehouse Stationary Hydraulic Scissor Lift 5M Max Lifting Height 7



The customers visiting:




Our services:

1) We can design the warehouse scissor lift as per your requirement.

2) The most suitable warehouse scissor lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
