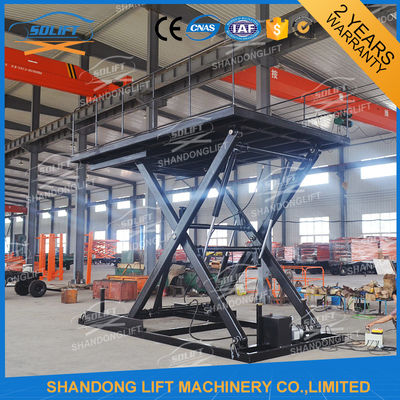

Portable Hydraulic Scissor Car Lift home elevator WITH high strength Manganese Steel

Name: Portable Hydraulic Scissor Car Lift home elevator WITH high strength Manganese Steel
Brand: SDLIFT Or OEM
SKU: SJG3-3
Price: 3980 USD
Availability: InStock
Rating: 4.8 (179 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3-3

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD7800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                vehicle scissor lift, home garage car lift


Application:	Hydraulic Portable Elevator Home Elevator	Safe Device:	Explosion-Proof Lock Valve
Lifting Speed:	3-6m/min	Motor:	From Italy Or Chinese Famous Brand
Material:	High Strength Manganese Steel	Lift System:	Hydraulic Motor Pump System
Power Supply:	220V/240V/380V/415V (as Request)	Type:	Mobile/fixed
Safety Trip Bar:	Under Platform

Application:	Hydraulic Portable Elevator Home Elevator
Safe Device:	Explosion-Proof Lock Valve
Lifting Speed:	3-6m/min
Motor:	From Italy Or Chinese Famous Brand
Material:	High Strength Manganese Steel
Lift System:	Hydraulic Motor Pump System
Power Supply:	220V/240V/380V/415V (as Request)
Type:	Mobile/fixed
Safety Trip Bar:	Under Platform

Portable Hydraulic Scissor Car Lift home elevator WITH high strength Manganese Steel

Hydraulic portable elevator home elevator with CE

Application:

The hydraulic portable elevator home elevator is used to convey the car or goods from ground to upper floors, it can installed in the pit, do not occupy space. In addition, for this lift elevator, many customers use it in production line or docks, so it canbe fixed directly on ground floor.

Structure:

The hydraulic portable elevator home elevator contains anti-skid platform, scissor structure and lift base, control panels are made for each level, if you need, we also can supply remote controller for easy control.

Parts showing:

Portable Hydraulic Scissor Car Lift home elevator WITH high strength Manganese Steel 0

The models we supplied for clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	700mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	750mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1050mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	950mm	220V, 240V, 380V or 400V
The hydraulic portable elevator home elevator can be customized as your detailed size.

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the hydraulic portable elevator home elevator to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic portable elevator home elevator are passed 1.2 times loading test before leaving factory.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Packaging & Shipping:

Portable Hydraulic Scissor Car Lift home elevator WITH high strength Manganese Steel 1
