Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments

Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments

    • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
    • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
    • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
    • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
    • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
  • Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE, ISO9001, SGS
    Model Number: SJGL0.25-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: US1980- USD4800 / UNIT
    Packaging Details: Iron case or nude
    Delivery Time: 30 days
    Supply Ability: 1200units per year
    Contact Now
    Detailed Product Description
    Usage: Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments Drive Type: Hydraulic
    Elevator Type: Passenger Elevators Material: Aluminum Alloy
    Installation: On The Ground Table Size: 1430mm(L) * 900mm(W)
    Control: Calling Box And Remote Controller Lift Drive: Hydraulic Cylinder
    Lift Mechanism: Lift Chain OEM: Available



    Portable 3M hydrualic small home lift elevator wheelchair lift for apartments



    Product Application

    The small home lift elevator can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.



    Main Features

    1.Safety Interlock: Lock the platform when it is out of control
    2.Emergency Stop: The lift can be stopped immediately in case of any emergency
    3.Emergency Lowering: The platform can be lowered by manual down button in case of power failure
    4.Safety Sensor: The lift will be stopped immediately if the safety edge meets obstacles when going down.
    5.Auto-flap ramp: Turn up to max 75°and prevent the wheelchair outside







    Model
    SJGL0.25-3
    Lift Height
    3000mm
    Lift Capacity
    250kg
    Material
    stainless steel or aluminum alloy
    Power
    220v, 240v, 380v, or as your request
    Note
    The lift can be designed as your request.

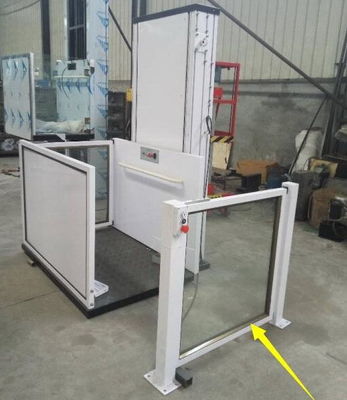

    Detailed Images









    Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments















    Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments




    Convenient operation design.



    1. Drive System: Hydraulic

    2. Control Mode: Inching Switch

    3. Drive Control: Self-resetting system

    4. Calling device: Calling box (Located at ground and upstairs), remote controller (optional)

    5. Column switch: Two column switches, one is on the ground floor, one on the first floor

    6. Working temperature: From -10°~60°C

    7. Overload: Protection over current relay

    8. Automatic ramp: 75°ramp Range

    9. Working Condition: Both indoors and outdoors

    10. Installation: Non-pit installation, directly fixed to concrete floor







    Instaillation Site



    Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments Portable 3M Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments
