|Application:||Small Home Lift Stair Platform Lift For People||Usage:||Residential Elevator Lift|
|Drive Type:||Hydraulic||Load Capacity:||250kgs|
|Lift Height:||3000mm||Platform Size:||1200mm(L) * 1000mm(W)|
|Control:||Calling Box And Remote Controller||Material:||Aluminum Alloy With Powder Coating|
|Safety Device:||Explosion Proof Lock Valve|
patient lifting hoists,
handicap lift equipment

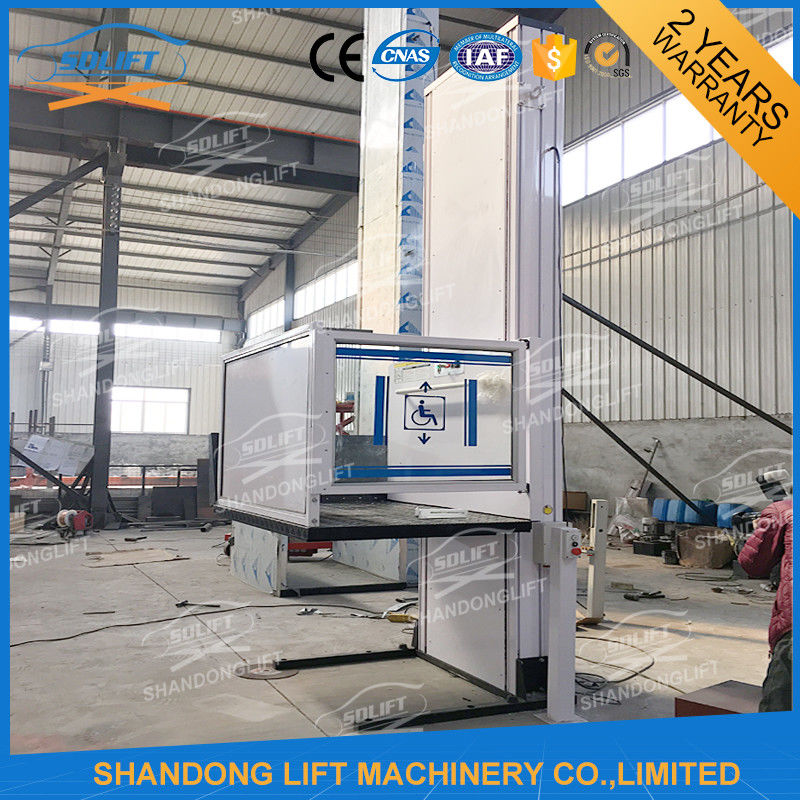

The stair platform lift can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.
Customized product can be done as your request:
Lift height: 1m - 12m
Load capacity: 250kg - 500kg
Material: stainless steel or aluminum alloy with Powder coating
|Max. Platform Height||3000mm|
|Platform size||1450mm(L)* 1000mm(W)|
|Min Platform height||80mm|
|In and out||180°in and out|
|Material||Stainless steel or aluminum alloy with Powder coating|
|Convenient operation design:|
|Control Mode||Inching Switch|
|Drive Control||Self-resetting system|
|Calling device||Calling box (Located at ground and upstairs), remote controller (optional)|
|Column switch||Two column switches, one is on the ground floor, one on the first floor|
|Working temperature||From -10°~60°C|
|Overload||Protection over current relay|
|Automatic ramp||75°ramp Range|
|Working Condition||Both indoors and outdoors|
|Installation||Non-pit installation, directly fixed to concrete floor|
|Safety Interlock:||Lock the platform when it is out of control|
|Emergency Stop||The lift can be stopped immediately in case of any emergency|
|Emergency Lowering||The platform can be lowered by manual down button in case of power failure|
|Safety Sensor||The lift will be stopped immediately if the safety edge meets obstacles when going down.|
|Auto-flap ramp||Turn up to max 75°and prevent the wheelchair outside|
1) We can design the customerized stair platform lift as per your requirement.
2) The stair platform lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
