Product Details
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG3-6
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Price: USD5800- USD9800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1200units per year
Application: |
Motorized Lift Table Electric Loading Dock Lifts |
Lift Mechanism: |
Scissor Lift System |
Lift Height: |
6m |
Lift Capacity:: |
3000kg |
Motor: |
Customer Required Brand Or Chinese Famous Brand |
Safety Handrail: |
2 Sides Or 4 Sides |
Lift System: |
Hydraulic System |
Safe Device: |
Explosion-Proof Lock Valve |
Application: |
Motorized Lift Table Electric Loading Dock Lifts |
Lift Mechanism: |
Scissor Lift System |
Lift Height: |
6m |
Lift Capacity:: |
3000kg |
Motor: |
Customer Required Brand Or Chinese Famous Brand |
Safety Handrail: |
2 Sides Or 4 Sides |
Lift System: |
Hydraulic System |
Safe Device: |
Explosion-Proof Lock Valve |
Parameters:
Load weight: 3000kgs
Lift height: 6000mm
Platform size: 5600mm x 2800mm
Power: 380v/3ph/50hz/5.5kw
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above motorized lift table electric loading dock lifts .
3) Equipped 4 guide rails, to ensure motorized lift table electric loading dock lifts runs more smoothly and steadily.
4) The limit switch system helps motorized lift table electric loading dock lifts to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the motorized lift table electric loading dock lifts are passed 1.2 times loading test before leaving factory.

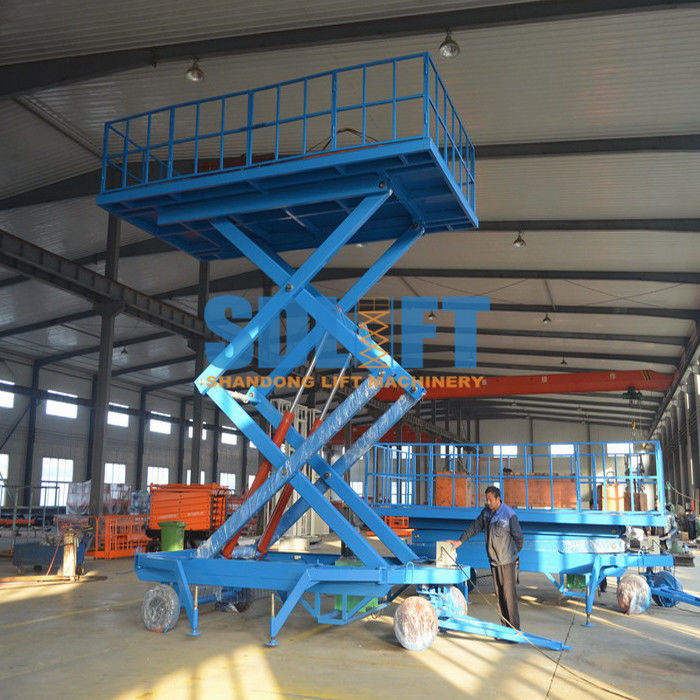

Finishing products in our workshop:
Application:
·The motorized lift table electric loading dock lifts can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on motorized lift table electric loading dock lifts , 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The motorized lift table electric loading dock lifts can be customized as your detailed size.
|
Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
The customers visiting:
Our services:
1) We can design the motorized lift table electric loading dock lifts as per your requirement.
2) The motorized lift table electric loading dock lifts will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
