Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift

Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift
Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift

Large Image :  Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift

Product Details:
Place of Origin: CHINA
Brand Name: SDLIFT
Certification: CE
Model Number: SJG1-10.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Iron case or plywood case package
Delivery Time: 10-25 days
Payment Terms: T/T, L/C
Supply Ability: 3500 Units / Year

Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift

Description
Lift Mechanism: Lift Chain Design:: Guide Rail Chain Elevator
Lifting Capacity: 1000kg Lifting Height(mm): 10500mm
Platform Size: 2200mm X 2000mm Installation: Platform In Pit
Pit Depth: 200mm Type: Double Cylinder Hydraulic Lift
Color: Red, Green, Blue Or As Your Requirements Lift Speed: 3-6m/min
Warranty: 24 Months Chain: 16A
Guardrail Height: 1100mm
High Light:

material lifting equipment

,

warehouse elevator lift

1ton 10.5m Hydraulic Elevator Lift Factory Goods Hydraulic Elevating Platform with CE certificate:



Application:

The Hydraulic Elevator Lift Hydraulic Elevating Platform is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors.

To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.



The frequent models we supplied for our clients:



MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG0.3-2

0.3T

1.5m x 1.5m

2m

200mm

220V, 240V, 380V or 400V

SJG0.5-3

0.5T

2m x 1.8m

3m

200mm

220V, 240V, 380V or 400V

SJG1-4.5

1T

2.1m x 1.5m

4.5m

200mm

220V, 240V, 380V or 400V

SJG1.5-4

1.5T

2.2m x 1.6m

4m

200mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

250mm

220V, 240V, 380V or 400V

SJG2.5-3

2.5T

5.2m x 2.6m

3m

250mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

250mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

250mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

250mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

250mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

260mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

300mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

300mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

300mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

The Hydraulic Elevator Lift Factory Goods Hydraulic Elevating Platform can be customized as your detailed size.

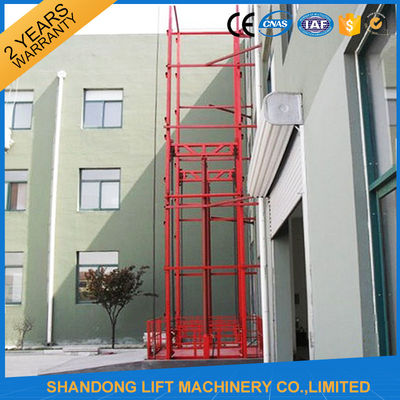

Installation sites:



Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift 0Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift 1



The customers visiting:



Guide Rail Chain Hydraulic Elevator Lift , Home Cargo Double Cylinder Hydraulic Lift 2



Our services:



1) We can design the Hydraulic Elevator Lift Hydraulic Elevating Platform as per your requirement.

2) The most suitable the Hydraulic Elevator Lift Hydraulic Elevating Platform will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 years warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9) We could reply you in 2 hours after received your any questions even on weekend and holiday.

    Engineers are available to your country if necessary.
