1m - 6m Home Vertical Wheelchair Lift , Exterior Residential Outside Elevators for Homes

Product Details

Place of Origin: China

Brand Name: SDLIFT

Certification: CE, ISO9001, SGS

Model Number: SJG0.25-2

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: US1980- USD4800 / UNIT

Packaging Details: Iron case or nude

Delivery Time: 5-15 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

patient lifting hoists

,

handicap lift equipment

Usage:
Home Used Vertical Wheelchair Lift For Old Disabled People
Control:
Calling Box And Remote Controller
Rated Loading Capacity:
250kg
Min. Lifting Height:
80mm
Max. Lifting Height:
2000mm
Table Size:
1200mm(L) * 1000mm(W)
Warranty:
24 Months
Material:
Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Mechanism:
Lift Chain
Lift Drive:
Hydraulic
Usage:
Home Used Vertical Wheelchair Lift For Old Disabled People
Control:
Calling Box And Remote Controller
Rated Loading Capacity:
250kg
Min. Lifting Height:
80mm
Max. Lifting Height:
2000mm
Table Size:
1200mm(L) * 1000mm(W)
Warranty:
24 Months
Material:
Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Mechanism:
Lift Chain
Lift Drive:
Hydraulic
1m - 6m Home Vertical Wheelchair Lift , Exterior Residential Outside Elevators for Homes

Home Used Vertical Wheelchair Lift For Old Disabled People With CE

with 2 Years Warranty:

Application:
The Home Used Vertical Wheelchair Lift For Old Disabled People is a device to transport wheelchair or motorized scooter and individual from one floor to another. It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.
Customized product can be done as your request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon.


Technical Parameters:


Specification:

Model

SJG0.25-2

Load capacity

250kg

Max. Platform Height

2000mm

Platform size

1200mm(L)* 1000mm(W)

Dimension

1450mm(L)*1250mm(W)*2700mm(H)

Min Platform height

60mm

In and out

180°in and out

Self weight

550kg

Material

Stainless steel or aluminum alloy with Powder coating

Power Input

220V/50HZ/1PH/1.5KW

Convenient operation design:

Drive System

Hydraulic

Control Mode

Inching Switch

Drive Control

Self-resetting system

Calling device

Calling box (at ground and upstairs), remote controller (optional)

Column switch

Two column switches, one is on the ground floor, one on the first floor

Working temperature

From -10°~60°C

Overload

Protection over current relay

Automatic ramp

75°ramp Range

Working Condition

Both indoors and outdoors

Installation

Non-pit installation, directly fixed to concrete floor

Safety Device:

Safety Interlock:

Lock the platform when it is out of control

Emergency Stop

The lift can be stopped immediately in case of any emergency

Emergency Lowering

The platform can be down by manual button in case of power failure

Safety Sensor

The lift will be stopped immediately if the safety edge meets obstacles
when going down.

Auto-flap ramp

Turn up to max 75°and prevent the wheelchair outside


The workshops:

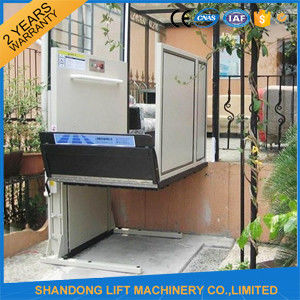

Product pictures:
1m - 6m Home Vertical Wheelchair Lift ,  Exterior Residential Outside Elevators for Homes  11m - 6m Home Vertical Wheelchair Lift ,  Exterior Residential Outside Elevators for Homes  2
1m - 6m Home Vertical Wheelchair Lift ,  Exterior Residential Outside Elevators for Homes  31m - 6m Home Vertical Wheelchair Lift ,  Exterior Residential Outside Elevators for Homes  4

The customers visiting:

Our services:

1) We can design the Home Used Vertical Wheelchair Lift For Old Disabled People as per your requirement.
2) The most suitable Home Used Vertical Wheelchair Lift For Old Disabled People will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
