Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person

Product Details

Place of Origin: China

Brand Name: SDLIFT

Certification: CE, ISO9001, SGS

Model Number: SJG0.25-3

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: US1980- USD4800 / UNIT

Packaging Details: Iron case or nude

Delivery Time: 5-15 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

patient lifting hoists

,

disability lifting equipment

Usage:
Outdoor Wheelchair Lift Home Wheelchair Lift Platform
Warranty:
24 Months
Rated Loading Capacity:
250kg
Min. Lifting Height:
80mm
Max. Lifting Height:
3000mm
Table Size:
1200mm(L) * 1000mm(W)
Control:
Calling Box And Remote Controller
Material:
Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Drive:
Hydraulic
Lift Mechanism:
Lift Chain
Usage:
Outdoor Wheelchair Lift Home Wheelchair Lift Platform
Warranty:
24 Months
Rated Loading Capacity:
250kg
Min. Lifting Height:
80mm
Max. Lifting Height:
3000mm
Table Size:
1200mm(L) * 1000mm(W)
Control:
Calling Box And Remote Controller
Material:
Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Drive:
Hydraulic
Lift Mechanism:
Lift Chain
Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person

Outdoor Wheelchair Lift Home Wheelchair Lift Platform with CE

with 2 Years Warranty:

Application:

The Outdoor Wheelchair Lift Home Wheelchair Lift Platform is a device to transport wheelchair or motorized scooter and individual from one floor to another. It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.

Customized product can be done as your request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon.



Features:

1. Platform size: 1200mm (L) * 1000mm (W)

2. Min Platform height: 60mm

3. Load capacity: 250KG~350KG

4. Lifting height: 1m to 6m

5. Vertical hydraulic lift platform

6. It could be customized, please tell us detail size requirement, our engineer will design it for you soon.



Lift Drawing:

Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 0

Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 1



Technical Parameters:



Platform size

1200mm(L)* 1000mm(W)

Dimension

1200mm(L)*1450mm(W)* Travel height +700-1100 mm(H)

Max Platform Height

1000mm to 6000mm

Min Platform height

60mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG~350KG

Control voltage

24V/DC

Power Output

2.2KW

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic  or screw

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Plastic electrostatic spraying

Painting

Plastic electrostatic spraying

Guard panel & drive cabinet

(framework)

Aluminum Alloy / 304 stainless steel



Operation Panel

Polished aluminum Alloy

Safety Wane Working Range

75°

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation



Non-pit installation, directly fixed to concrete floor

(the concrete floor below the platform shall not be

lower than the ground)

Control Device



Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop



The lifting and lowering process can be stopped immediately

by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately

the safety edge meets obstacles during

operation .

Emergency lowering

The platform can be lowered by opening

hydraulic valve manually or rolling screw rod.

Auto-flap

Turn up after lifting

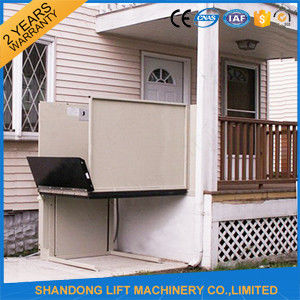

Product pictures:

Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 2Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 3

Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 4Home Wheelchair Outdoor Residential Elevator Handicap Lift Equipment for Lifting Disabled Person 5



The workshops:


The customers visiting:


Our services:

1) We can design the Outdoor Wheelchair Lift Home Wheelchair Lift Platform as per your requirement.

2) The most suitable Outdoor Wheelchair Lift Home Wheelchair Lift Platform will be recommended to you once we get your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
