• Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate
  • Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate
Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate

Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS, SONCAP
Model Number: YZXQ10-0.55

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US1180- USD4980 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 5-10 work days
Supply Ability: 3600units per year
Get Best Price Contact Now

Detail Information

Usage: Fixed Hydraulic Truck Ramp With Goods Anti-skid Performance For Sale Warranty: 24 Months
Work Platform: Anti-skid Checkered Steel Plate Power: 1.1kw - 2.2kw
Rated Loading Capacity: 6000 - 15000kgs Lifting Height: Up 300mm, Down 250mm
Color: Blue, Green, Yellow, Grey Or As Your Request Table Size: 2000x2000mm Or 2500x2000mm
Safety Device: Explosion Proof Lock Valve Material: High Strength Manganese Steel
Feature: Easy Operation, Safety, Convenience
High Light:

hydraulic dock leveler

,

loading dock lift systems

Product Description

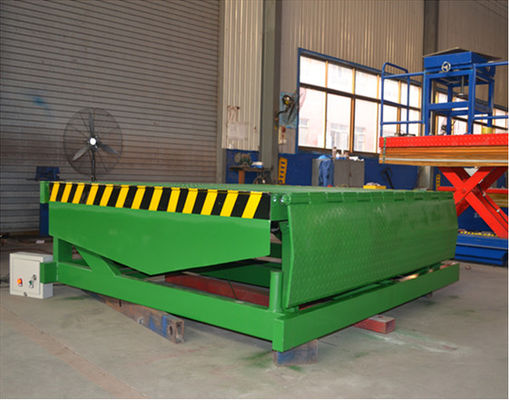

Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate

Fixed hydraulic truck ramp with goods anti-skid performance for sale

With 2 Years Warranty

Application:

The fixed hydraulic truck ramp is the auxiliary equipment for cargo loading and unloading.

It is widely used in warehouse, station, wharf, warehousing logistics base, postal transportation etc.

Convenient push button activation and first-class hydraulic technology increase the efficiency and safety of the loading and unloading work.

It is classified to five kinds by carrying-weight capacity, such as 5T,6T, 8T, 10T, 12T, 15T etc.



Description:

1. High quality hydraulic cylinders.

2. Anti-blowout high-pressure tubing

3. Protector steel plates on both sides

4. Two pieces rubber protective pad

5. 10# "I"-beam reinforcement ribs design under the deck

6. 10# U steel for Chassis

7. Lip thickness: 14mm and above cover 3mm thickness checkered steel plate.

8. Deck thickness: 6mm thickness checkered steel plate

9. The lip and deck connected by long shaft hinge, make it high strength and long life.



Products list:

Model No.

Capacity
(kg)

Platform size
(m)

Lip plate width
(m)

Travel Distance

Motor
(Kw)

Pit size (m)

UP

DOWM

L

W

H

YZXQ6-0.55

6000

2m*2m

0.4

0.3

0.25

1.1

2.08

2.04

0.6

YZXQ8-0.55

8000

2m*2m

0.4

0.3

0.25

1.1

2.08

2.04

0.6

YZXQ10-0.55

10000

2m*2m

0.4

0.3

0.25

1.1

2.08

2.04

0.6

YZXQ6-0.7

6000

2.5m*2m

0.4

0.4

0.3

1.1

2.58

2.04

0.6

YZXQ8-0.7

8000

2.5m*2m

0.4

0.4

0.3

1.1

2.58

2.04

0.6

YZXQ10-0.7

10000

2.5m*2m

0.4

0.4

0.3

1.1

2.58

2.04

0.6


Application site:
Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate 0

Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate 1

Fixed Hydraulic Truck Ramp Automatic Dock Levelers with Anti Skid Checkered Steel Plate 2

Our services:
1) We can design fixed hydraulic truck ramp as per your requirement.
2) The most suitable fixed hydraulic truck ramp will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
