High Light:
hydraulic dock leveler
, loading dock lift systems
Usage: |
Warehouse Loading Dock Leveler And Dock Ramp Lift |
Rated Loading Capacity: |
6000 - 15000kgs |
Lifting Height: |
Up 300mm, Down 250mm |
Power: |
1.1kw - 2.2kw |
Warranty: |
24 Months |
Work Platform: |
Anti-skid Checkered Steel Plate |
Feature: |
Easy Operation, Safety, Convenience |
Table Size: |
2000x2000mm Or 2500x2000mm |
Safety Device: |
Explosion Proof Lock Valve |
Material: |
High Strength Manganese Steel |
Color: |
Blue, Green, Yellow, Grey Or As Your Request |

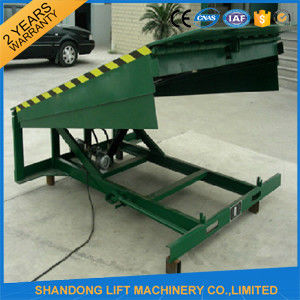

Fixed Warehouse Loading Dock Leveler And Dock Ramp Lift with CE
With 2 Years Warranty
Application:
The warehouse loading dock leveler and dock ramp lift is the auxiliary equipment for cargo loading and unloading.
It is widely used in warehouse, station, wharf, warehousing logistics base, postal transportation etc.
Convenient push button activation and first-class hydraulic technology increase the efficiency and safety of the loading and unloading work.
It is classified to five kinds by carrying-weight capacity, such as 5T,6T, 8T, 10T, 12T, 15T etc.
Products list:
|
Model No.
|
Capacity
(kg)
|
Platform size
(m)
|
Lip plate width
(m)
|
Travel Distance
|
Motor
(Kw)
|
Pit size (m)
|
|
UP
|
DOWM
|
L
|
W
|
H
|
|
YZXQ6-0.55
|
6000
|
2m*2m
|
0.4
|
0.3
|
0.25
|
1.1
|
2.08
|
2.04
|
0.6
|
|
YZXQ8-0.55
|
8000
|
2m*2m
|
0.4
|
0.3
|
0.25
|
1.1
|
2.08
|
2.04
|
0.6
|
|
YZXQ10-0.55
|
10000
|
2m*2m
|
0.4
|
0.3
|
0.25
|
1.1
|
2.08
|
2.04
|
0.6
|
|
YZXQ6-0.7
|
6000
|
2.5m*2m
|
0.4
|
0.4
|
0.3
|
1.1
|
2.58
|
2.04
|
0.6
|
|
YZXQ8-0.7
|
8000
|
2.5m*2m
|
0.4
|
0.4
|
0.3
|
1.1
|
2.58
|
2.04
|
0.6
|
|
YZXQ10-0.7
|
10000
|
2.5m*2m
|
0.4
|
0.4
|
0.3
|
1.1
|
2.58
|
2.04
|
0.6
|
Description:
1. High quality hydraulic cylinders.
2. Anti-blowout high-pressure tubing
3. Protector steel plates on both sides
4. Two pieces rubber protective pad
5. 10# "I"-beam reinforcement ribs design under the deck
6. 10# U steel for Chassis
7. Lip thickness: 14mm and above cover 3mm thickness checkered steel plate.
8. Deck thickness: 6mm thickness checkered steel plate
9. The lip and deck connected by long shaft hinge, make it high strength and long life.
Application site:
Our services:
1) We can design warehouse loading dock leveler and dock ramp lift as per your requirement.
2) The most suitable warehouse loading dock leveler and dock ramp lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
