2m Height 250kg Capacity Wheelchair Platform Lift Disabled Home Stair Lift For Old People

Name: 2m Height 250kg Capacity Wheelchair Platform Lift Disabled Home Stair Lift For Old People
Brand: SDLIFT
SKU: SJGL0.25-2
Price: 1280 USD
Availability: InStock
Rating: 4.6 (121 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT

Certification: CE, ISO9001, SGS

Model Number: SJGL0.25-2

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: US1280- USD4800 / UNIT

Packaging Details: Iron case or nude

Delivery Time: 30 days

Supply Ability: 1000units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                patient lifting hoists, handicap lift equipment


Usage:	Residential Elevator Home Stair Lift	Warranty:	24 Months
Install:	Outdoor Or Indoor	Lift Mechanism:	Lift Chain
Max. Lifting Height:	1m-12m	Table Size:	1200mm(L) * 1000mm(W)
Control:	Calling Box And Remote Controller	Material:	Aluminum Alloy With Powder Coating
Lift Drive:	Hydraulic	OEM:	Available

Usage:	Residential Elevator Home Stair Lift
Warranty:	24 Months
Install:	Outdoor Or Indoor
Lift Mechanism:	Lift Chain
Max. Lifting Height:	1m-12m
Table Size:	1200mm(L) * 1000mm(W)
Control:	Calling Box And Remote Controller
Material:	Aluminum Alloy With Powder Coating
Lift Drive:	Hydraulic
OEM:	Available

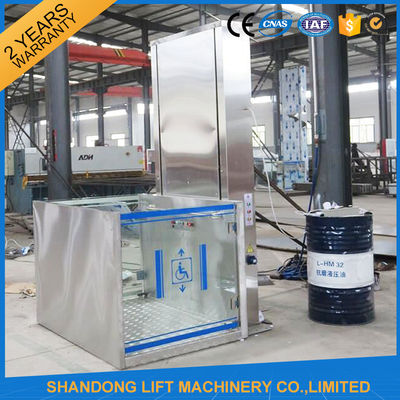

2m Height 250kg Capacity Wheelchair Platform Lift Disabled Home Stair Lift For Old People

China 2m height 250kg capacity disabled home stair lift

Application:

The stair lift china can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.

Customized product can be done as your request:

Lift height: 1m - 12m

Load capacity: 250kg - 500kg

Material: stainless steel or aluminum alloy with Powder coating

Glass door: 1 or 2pc

If you need any more information, tell us freely.

Detailed views:

Technical Parameters:

Specification:
Model	SJG0.25-2
Load capacity	250kg
Max. Platform Height	2000mm
Platform size	1200mm(L)* 1000mm(W)
Dimension	1450mm(L)1250mm(W)4100mm(H)
Min Platform height	70mm
In and out	180°in and out
Self weight	700kg
Material	Stainless steel or aluminum alloy with Powder coating
Power Input	220V/50HZ/1PH/1.5KW
Convenient operation design:
Drive System	Hydraulic
Control Mode	Inching Switch
Drive Control	Self-resetting system
Calling device	Calling box (Located at ground and upstairs), remote controller (optional)
Column switch	Two column switches, one is on the ground floor, one on the first floor
Working temperature	From -10°~60°C
Overload	Protection over current relay
Automatic ramp	75°ramp Range
Working Condition	Both indoors and outdoors
Installation	Non-pit installation, directly fixed to concrete floor
Safety Device:
Safety Interlock:	Lock the platform when it is out of control
Emergency Stop	The lift can be stopped immediately in case of any emergency
Emergency Lowering	The platform can be lowered by manual down button in case of power failure
Safety Sensor	The lift will be stopped immediately if the safety edge meets obstacles when going down.
Auto-flap ramp	Turn up to max 75°and prevent the wheelchair outside

Our service:

1) We can design the customerized stair lift as per your requirement.
2) The stair lift china will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
