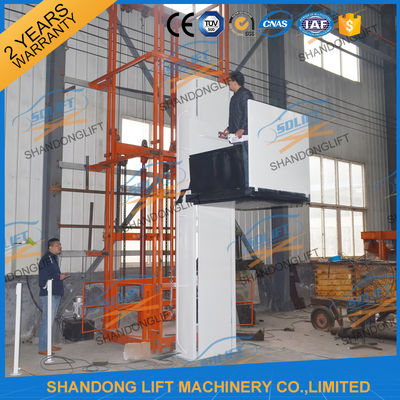

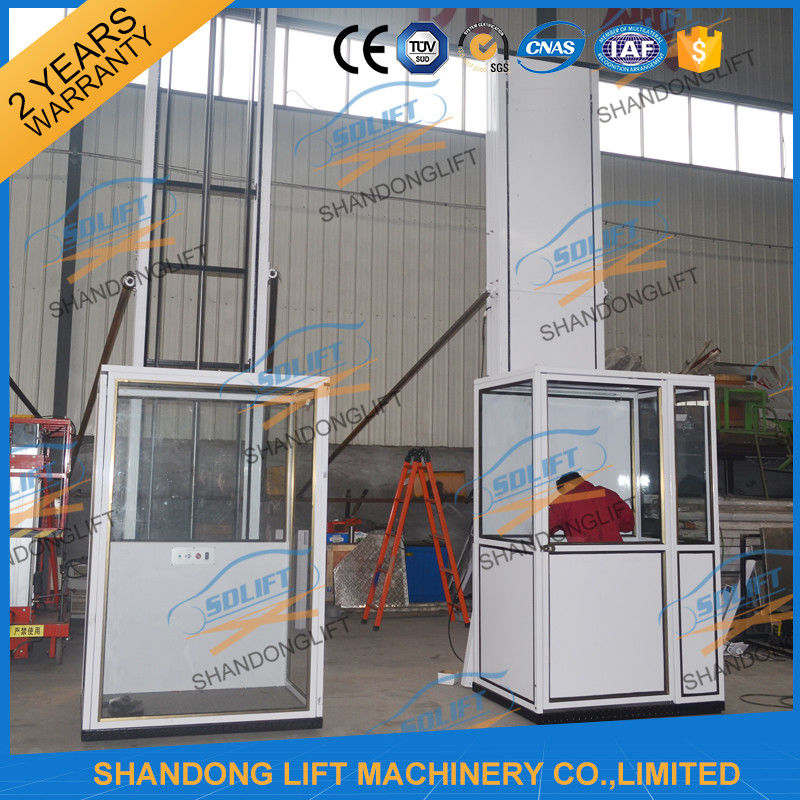

Portable 3M Wheelchair Platform Lift Passenger Elevators For Apartments
Product Details:
| Place of Origin: | China |
| Brand Name: | SDLIFT |
| Certification: | CE, ISO9001, SGS |
| Model Number: | SJGL0.25-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | US1980- USD4800 / UNIT |
| Packaging Details: | Iron case or nude |
| Delivery Time: | 30 days |
| Supply Ability: | 1200units per year |
|
Detail Information |
|||
| Usage: | Hydrualic Small Home Lift Elevator Wheelchair Lift For Apartments | Drive Type: | Hydraulic |
|---|---|---|---|
| Elevator Type: | Passenger Elevators | Material: | Aluminum Alloy |
| Installation: | On The Ground | Table Size: | 1430mm(L) * 900mm(W) |
| Control: | Calling Box And Remote Controller | Lift Drive: | Hydraulic Cylinder |
| Lift Mechanism: | Lift Chain | OEM: | Available |
| High Light: | patient lifting hoists,disability lifting equipment |
||
Product Description
Portable 3M Wheelchair Platform Lift Passenger Elevators For Apartments
Portable 3M hydrualic small home lift elevator wheelchair lift for apartments
Product Application
The small home lift elevator can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.
The small home lift elevator can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.
Main Features
1.Safety Interlock: Lock the platform when it is out of control
2.Emergency Stop: The lift can be stopped immediately in case of any emergency
3.Emergency Lowering: The platform can be lowered by manual down button in case of power failure
4.Safety Sensor: The lift will be stopped immediately if the safety edge meets obstacles when going down.
5.Auto-flap ramp: Turn up to max 75°and prevent the wheelchair outside
1.Safety Interlock: Lock the platform when it is out of control
2.Emergency Stop: The lift can be stopped immediately in case of any emergency
3.Emergency Lowering: The platform can be lowered by manual down button in case of power failure
4.Safety Sensor: The lift will be stopped immediately if the safety edge meets obstacles when going down.
5.Auto-flap ramp: Turn up to max 75°and prevent the wheelchair outside
|
Model
|
SJGL0.25-3
|
|
Lift Height
|
3000mm
|
|
Lift Capacity
|
250kg
|
|
Material
|
stainless steel or aluminum alloy
|
|
Power
|
220v, 240v, 380v, or as your request
|
|
Note
|
The lift can be designed as your request.
|
Detailed Images
Convenient operation design.
1. Drive System: Hydraulic
2. Control Mode: Inching Switch
3. Drive Control: Self-resetting system
4. Calling device: Calling box (Located at ground and upstairs), remote controller (optional)
5. Column switch: Two column switches, one is on the ground floor, one on the first floor
6. Working temperature: From -10°~60°C
7. Overload: Protection over current relay
8. Automatic ramp: 75°ramp Range
9. Working Condition: Both indoors and outdoors
10. Installation: Non-pit installation, directly fixed to concrete floor
Instaillation Site
