Highlight:
safety work platform
, telescopic boom lift rental

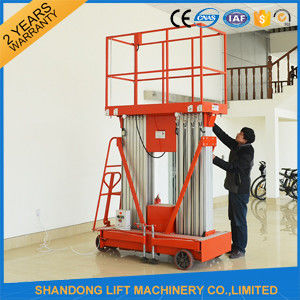

12m Hydraulic 2 Post Aluminum Alloy Man Lift Rental For Aerial Wok Platform
Hydraulic Double Post Aluminum Alloy Man Lift For Aerial Wok Platform
with CE With 2 Years Warranty
Application:
The Hydraulic Double Post Aluminum Alloy Man Lift For Aerial Wok Platform is a very flexible machine. Single man can control it easily. It is widely use in workshop, building site hotel,airport, station,dock stadium,shopping malls, factory and so on,for aerial work such as installation, repairing and cleaning etc.
Advantages:
A.With good flexibility, and suitable for two people working on it.
B. Beautiful structure, light weight.
C. Compact structure, small size, can enter narrow and small area.
D. Safety protection device and imported pump, increases the service life and safety assurance.
Safety precautions:
A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
Product List:
|
Model
|
Load capacity
|
Platform size
|
Lift height
|
Column
|
Power
|
Total dimension
|
Weight
|
|
YBC0.1-4
|
100kg
|
600×600mm
|
4m
|
one
|
1.5kw
|
1200×800×1800mm
|
280kg
|
|
YBC0.1-6
|
100kg
|
600×600mm
|
6m
|
one
|
1.5kw
|
1260×800×1960mm
|
300kg
|
|
YBC0.2-6
|
200kg
|
1300×600mm
|
6m
|
two
|
1.5kw
|
1750×800×1950mm
|
480kg
|
|
YBC0.1-8
|
100kg
|
600×600mm
|
8m
|
one
|
1.5kw
|
1260×800×1980mm
|
340kg
|
|
YBC0.2-8
|
200kg
|
1450×600mm
|
8m
|
two
|
1.5kw
|
1900×800×1980mm
|
580kg
|
|
YBC0.1-10
|
100kg
|
600×600mm
|
10m
|
one
|
1.5kw
|
1600×880×2180mm
|
480kg
|
|
YBC0.2-10
|
200kg
|
1450×600mm
|
10m
|
two
|
1.5kw
|
1900×800×1980mm
|
760kg
|
|
YBC0.2-12
|
200kg
|
1650×600mm
|
12m
|
two
|
1.5kw
|
2000×890×2080mm
|
860kg
|
|
YBC0.2-14
|
200kg
|
1470×800mm
|
14m
|
three
|
2.2kw
|
1750×1220×2250mm
|
1040kg
|
|
YBC0.2-16
|
200kg
|
1470×800mm
|
16m
|
four
|
2.2kw
|
1900×1280×2250mm
|
1400kg
|
|
YBC0.2-18
|
200kg
|
1400×1000mm
|
18m
|
four
|
2.2kw
|
3500×1500×2100mm
|
1980kg
|
|
YBC0.15-19
|
150kg
|
1560×850mm
|
19m
|
four
|
2.2kw
|
2550×1500×2250mm
|
2080kg
|
|
YBC0.15-20
|
150kg
|
1500×1100mm
|
20m
|
four
|
2.2kw
|
3800×1500×2250mm
|
2200kg
|
Factory pictures:
The Certificate:
Our Services
1) We can design the customerized aluminum aerial work platform as per your requirement.
2) The most suitable aluminum aerial work platform will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
