12m Height Aerial Work Platform Lift

China Shandong Lift Machinery Co.,Ltd certification
China Shandong Lift Machinery Co.,Ltd certification
Customer Reviews
I came to order, I saw a very large factory with professional advanced equipment,clean workshop, first-class raw materials, a very trustable supplier!

—— Mr. Marc - Belgium

Very professional for products. Very good services during the order!

—— Mr. James - Australia

Exclent Lift Platform Lift ! Professional Saler ! Good Business with Shandong Lift.

—— Mr. Mushi - India

Very good business with Shandong Lift ! Will co-operate more and more in future!

—— Mr. Bruce - New Zealand

I'm Online Chat Now

12m Height Aerial Work Platform Lift

12m Height Aerial Work Platform Lift
12m Height Aerial Work Platform Lift 12m Height Aerial Work Platform Lift 12m Height Aerial Work Platform Lift 12m Height Aerial Work Platform Lift

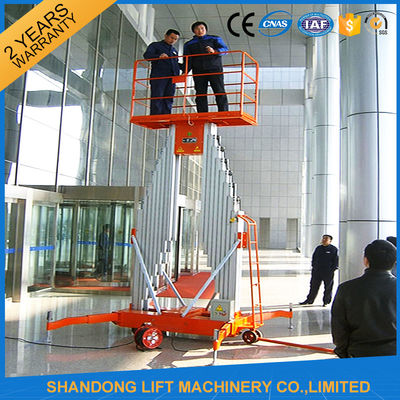

Large Image :  12m Height Aerial Work Platform Lift

Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO9001 SGS BV
Model Number: YBC0.2-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD1980 - 4800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 3800 units per year

12m Height Aerial Work Platform Lift

Application: Hydraulic Aluminium Ladder Platform Lift Warranty: 24 Months
Material: High Strength Aluminum Alloy Lifting Height: 4m - 20m
Usage: Used For High Altitude Working Table Size: 1400*600mm
Min. Lifting Height: 1980mm Overall Dimensions: 1900×800×1980mm
Load Capacity: 200kg Voltage: 110v 220v 240v 380v Optional
Feature: Easy Operation Safety Convenience
High Light:

safety work platform


man lift rental

200kg capacity 12m height hydraulic aluminium ladder platform:


with 2 Years Warranty



The aluminium ladder platform lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Operation is easy. There are 2 sets control system installed on the aluminium ladder, 1 control box below, and 1 control panel on safe rail that can be operated on man lift.




1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the aluminium ladder to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the aluminium ladder are passed 1.2 times loading test before leaving factory.


Product List:


Model Support column Load capacity Platform size Lift height Power Total dimension Weight
SJYL0.1-6 one 100kg 550×550mm 6m 1.1kw 1260×800×1900mm 340Kg
SJYL0.2-6 two 200kg 1050×550mm 6m 1.1kw 1360×820×1900mm 520Kg
SJYL0.2-8 two 200kg 1100×550mm 8m 1.1kw 1480×820×1980mm 580Kg
SJYL0.2-10 two 200kg 1400×600mm 10m 1.1kw 1780×890×2080mm 660kg
SJYL0.2-12 two 200kg 1400×600mm 12m 1.1kw 1860×1150×2150mm 860kg
SJYL0.2-14 three 200kg 1470×800mm 14m 2.2kw 1750×1220×2250mm 1040kg
SJYL0.2-16 four 200kg 1470×800mm 16m 2.2kw 1900×1280×2250mm 1400kg
SJYL0.2-19 four 150kg 1560×850mm 19m 2.2kw 2550×1500×2250mm 1800kg


The workshops:


200kg capacity 12m height hydraulic aluminium ladder platform


Our Services:

1) We can design the customerized aluminium ladder as per your requirement.

2) The most suitable aluminium ladder will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
