    Mobile Aerial Working Electric Lift Ladder Renting Scaffolding with 4 Wheels

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE ISO9001 SGS BV
    Model Number: YBC0.2-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD2980 - 4900 / Set
    Packaging Details: Iron case or plywood case package
    Delivery Time: 5-20 work days after deposit
    Supply Ability: 3800 units per year
    Get Best Price Contact Now

    Detail Information

    Application: Mobile Aerial Working Platform Man Lift Electric Lift Ladder Moving Method: Manual Push With Four Wheels
    Load Capacity: 200kg Lifting Height: 4m - 20m
    Warranty: 24 Months Min. Lifting Height: 1980mm
    Table Size: 1400*600mm Overall Dimensions: 2000×890×2080mm
    Material: High Strength Aluminum Alloy Voltage: 110v 220v 240v 380v Optional
    Feature: Easy Operation Safety Convenience
    High Light:

    safety work platform

    ,

    man lift rental

    Product Description

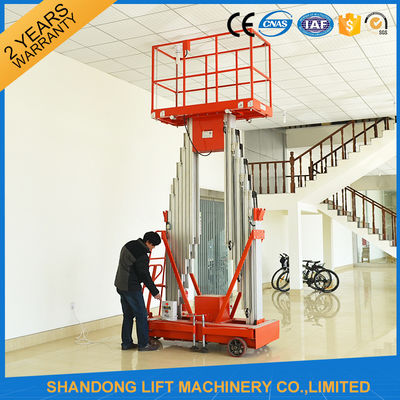

    Mobile Aerial Working Electric Lift Ladder Renting Scaffolding with 4 Wheels

    Mobile Aerial Working Platform Man Lift  Electric Lift Ladder

    with CE With 2 Years Warranty

    Application:

    The Mobile Aerial Working Platform Man Lift  Electric Lift Ladder is a very flexible machine. Single man can control it easily. It is widely use in workshop, building site hotel,airport, station,dock stadium,shopping malls, factory and so on,for aerial work such as installation, repairing and cleaning etc.



    Safety:

    1) Double safety device: high quality chain and wire rope

    2) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
    3) The safety rails to guarantee safety of the people above platform.
    4) The limit switch system helps the Mobile Aerial Working Platform Man Lift  Electric Lift Ladder to stop at accurate position.
    5) Electricity leakage protection device is equipped on, all electric components are CE certified.
    6) All the Mobile Aerial Working Platform Man Lift  Electric Lift Ladder are passed 1.2 times loading test before leaving factory.



    Product List:

    Model

    Load capacity

    Platform size

    Lift height

    Column

    Power

    Total dimension

    Weight

    YBC0.1-4

    100kg

    600×600mm

    4m

    one

    1.5kw

    1200×800×1800mm

    280kg

    YBC0.1-6

    100kg

    600×600mm

    6m

    one

    1.5kw

    1260×800×1960mm

    300kg

    YBC0.2-6

    200kg

    1300×600mm

    6m

    two

    1.5kw

    1750×800×1950mm

    480kg

    YBC0.1-8

    100kg

    600×600mm

    8m

    one

    1.5kw

    1260×800×1980mm

    340kg

    YBC0.2-8

    200kg

    1450×600mm

    8m

    two

    1.5kw

    1900×800×1980mm

    580kg

    YBC0.1-10

    100kg

    600×600mm

    10m

    one

    1.5kw

    1600×880×2180mm

    480kg

    YBC0.2-10

    200kg

    1450×600mm

    10m

    two

    1.5kw

    1900×800×1980mm

    760kg

    YBC0.2-12

    200kg

    1650×600mm

    12m

    two

    1.5kw

    2000×890×2080mm

    860kg

    YBC0.2-14

    200kg

    1470×800mm

    14m

    three

    2.2kw

    1750×1220×2250mm

    1040kg

    YBC0.2-16

    200kg

    1470×800mm

    16m

    four

    2.2kw

    1900×1280×2250mm

    1400kg

    YBC0.2-18

    200kg

    1400×1000mm

    18m

    four

    2.2kw

    3500×1500×2100mm

    1980kg

    YBC0.15-19

    150kg

    1560×850mm

    19m

    four

    2.2kw

    2550×1500×2250mm

    2080kg

    YBC0.15-20

    150kg

    1500×1100mm

    20m

    four

    2.2kw

    3800×1500×2250mm

    2200kg



    Factory pictures:



    Mobile Aerial Working Electric Lift Ladder Renting Scaffolding with 4 Wheels 0

    Mobile Aerial Working Electric Lift Ladder Renting Scaffolding with 4 Wheels 1



    The Certificate:certificate.jpg



    Our Services

    1) We can design the customerized Mobile Aerial Working Platform Man Lift  Electric Lift Ladder as per your requirement.

    2) The most suitable Mobile Aerial Working Platform Man Lift  Electric Lift Ladder will be recommended to you once we got your requirement.

    3) Shipment can be arranged from our port to your destination port.

    4) Operation video can be sent to you if needed.

    5) User-friendly English manual for machine installation using and maintenance.

    6) 2 year warranty for whole machine without man-made faults.

    7) We will send you parts for free if there are any non-human factors faults during warranty time.

    8) Supply 24-hours technical assistance by email, telephone or other communication online.

    9) Engineers are available to your country if necessary.
