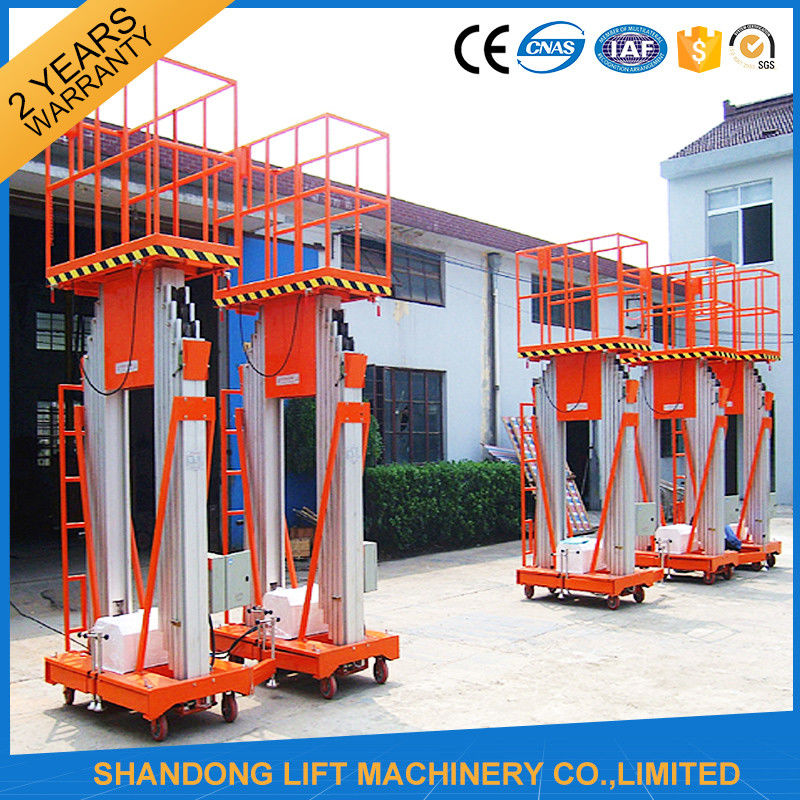

    200kg 10m Movable Aerial Work Platform Lift , Hydraulic Safety Work Platform Rental

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE ISO9001 SGS BV
    Model Number: YBC0.2-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD1980 - 4800 / Set
    Packaging Details: Iron case or plywood case package
    Delivery Time: 5-20 work days after deposit
    Supply Ability: 3800 units per year
    Get Best Price Contact Now

    Detail Information

    Application: Movable Aluminum Aerial Work Platforms Lifts Warranty: 24 Months
    Material: High Strength Aluminum Alloy Lifting Height: 4m - 20m
    Lift Drive: Electric Hydraulic Motor Table Size: 1400*600mm
    Min. Lifting Height: 1980mm Overall Dimensions: 1900×800×1980mm
    Load Capacity: 200kg Voltage: 110v 220v 240v 380v Optional
    Feature: Easy Operation Safety Convenience
    High Light:

    safety work platform

    ,

    telescopic boom lift rental

    Product Description

    200kg 10m Movable Aerial Work Platform Lift , Hydraulic Safety Work Platform Rental

    Movable Aluminum Aerial Work Platforms Lifts With CE

    With 2 Years Warranty

    The Movable Aerial Work Platform Lifts are an industry favorite lift due to its of use, convenience, and flexibility. Its lightweight maneuverability and durable design make it a versatile option for a wide variety of rental, light-duty construction, and maintenance applications.



    Features:

    •  Standard Base
    •  User-friendly ground and platform controls with auxiliary platform lowering
    •  A tilt-back frame allows the platform lift to roll through doorways
    •  Quick set-up and simple to operate
    •  Durable patented Honty mast system
    •  Easy to manuever around and over obstacles with the Rocker Base System
    •  Small outrigger footprint for positioning close to walls
    •  Easy to load and transport in pickup trucks

    Model& Advantages



    Single mast lift for: Single people climbing operations

    •  Platform maximum height specifications: Optional 4m, 6m, 8m
    •  Power supply: default: single-phase AC power
    •  Move: Manually
    •  Bi-directional control up and down the platform with the emergency stop button;
    •  Screw legs;
    •  Level Instruments;
    •  Short circuit protection;
    •  Motor overheating protection function;
    •  Emergency limit switches;
    •  Power self-locking function;
    •  Emergency descent system;
    •  Overload protection (with buzzer);
    •  Crack pipe means





     Product List:



    Model

    Lifting height

    Loading Capacity

    Table Size

    Overall Dimensions

    Weight

    Power

    Single mast

    YBC0.1-4

    4m

    100kg

    600*600mm

    1250*840*1850mm

    400kg

    1.1kw

    YBC0.1-6

    6m

    100kg

    600*600mm

    1350*840*1950mm

    450kg

    1.1kw

    YBC0.1-8

    8m

    100kg

    600*600mm

    1500*840*2300mm

    500kg

    1.5kw



     Dual masts  hydraulic aluminum lift platform



    double the mast aluminum alloy lift/Aerial vertical work platform dual wast



    double the mast aluminum alloy lift/Aerial vertical work platform dual wastdouble the mast aluminum alloy lift/Aerial vertical work platform dual wast

    Model

    Lifting height

    Loading Capacity

    Table Size

    Overall Dimensions

    Weight

    Power







    Double masts

    YBC0.2-6

    6m

    200kg

    1200*600mm

    1200*840*1980mm

    500kg

    1.5kw

    YBC0.2-8

    8m

    200kg

    1400*600mm

    1400*840*1980mm

    600kg

    1.5kw

    YBC0.2-10

    10m

    200kg

    1500*600mm

    1550*840*1980mm

    680kg

    1.5kw

    YBC0.2-12

    12m

    200kg

    1550*600mm

    1950*960*1980mm

    750kg

    1.5kw

    YBC0.2-14

    14m

    200kg

    1550*600mm

    1950*960*2300mm

    800kg

    1.5kw



      Three masts  hydraulic aluminum lift platform

    double the mast aluminum alloy lift/Aerial vertical work platform dual wast

    Three masts

    Model

    Lifting height

    Loading Capacity

    Table Size

    Overall Dimensions

    Weight

    Power



    YBC0.2-14

    14m

    200kg

    1550*950mm

    1950*1200*2400mm



    2.2kw

    YBC0.2-16

    16m

    200kg

    1550*950mm

    2000*1200*2900mm



    2.2kw



    Four masts  hydraulic aluminum lift platform

    double the mast aluminum alloy lift/Aerial vertical work platform dual wast



     model

     lifting height  loading capacity  table size  overall dimensions weight  power

    Four masts

    YBC0.2-14

    14m

    200kg

    1550*950mm

    1950*1200*2400mm



    2.2kw

    YBC0.2-16

    16m

    200kg

    1550*1150mm

    2000*1400*2900mm



    2.2kw

    YBC0.2-18

    18m

    200kg

    1650*1150mm

    2200*1400*2900mm



    2.2kw

    YBC0.2-20

    20m

    200kg

    1650*1150mm

    2200*1400*2900mm



    2.2kw
